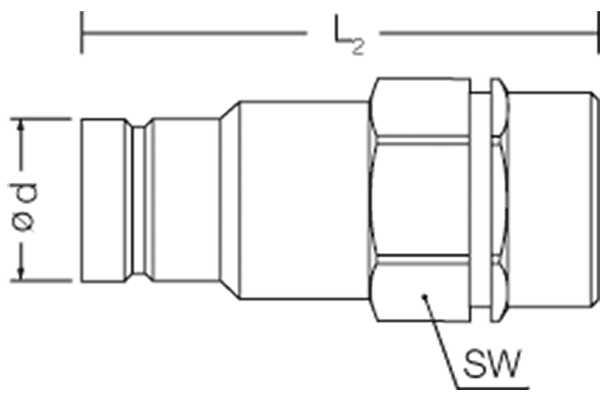

VC-FF-IG1/2-10S

Product info

• Technical data

  Size:	2
  DN:	10
  Size:	06
  Inch:	3/8
  working pressure [bar]:	300
  Thread + standard:	BSP internal thread DIN 3852
  Thread [GA]:	1/2
  Outer Ø plug [mm]:	19,7
  Length plug [mm]:	59,8
  Wrench size connection side plug:	27
  SW [mm]:	27
  Wrench size connection side sleeve:	27
  SW1 [mm]:	27
  l/min at ΔP=2 bar:	30
  Material:	C45
  Product title long:	Series VC-FF male coupling (ISO 16028).
  Product title short:	male coupling
