Product info
-
Technical data

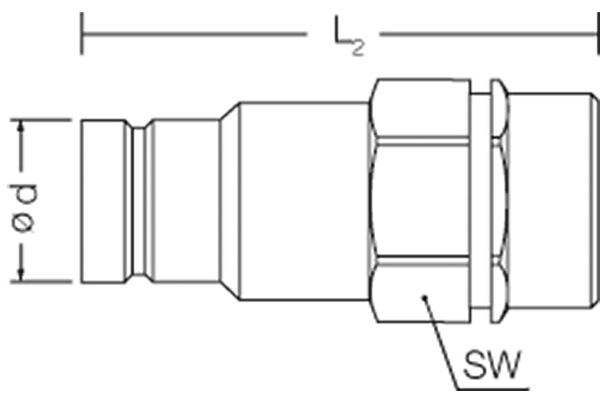

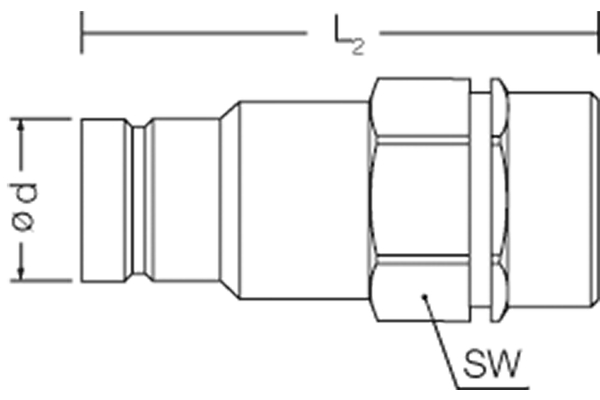

Size: 3 DN: 12 Size: 08 Inch: 1/2 working pressure [bar]: 300 Thread + standard: BSP internal thread DIN 3852 Thread [GA]: 1/2 Outer Ø plug [mm]: 24,5 Length plug [mm]: 72,0 SW [mm]: 32 SW1 [mm]: 32 l/min at ΔP=2 bar: 60 Material: C45 wrong type: false
