VC-FF-IG1-20S

Product info

• Technical data

  Size:	6
  DN:	20
  Size:	12
  Inch:	3/4
  working pressure [bar]:	250
  Thread + standard:	BSP internal thread DIN 3852
  Thread [GA]:	1

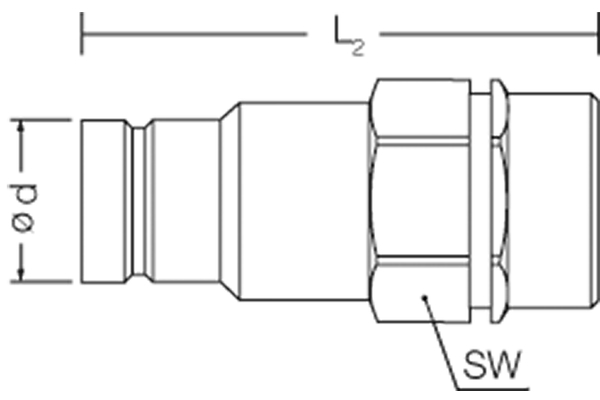

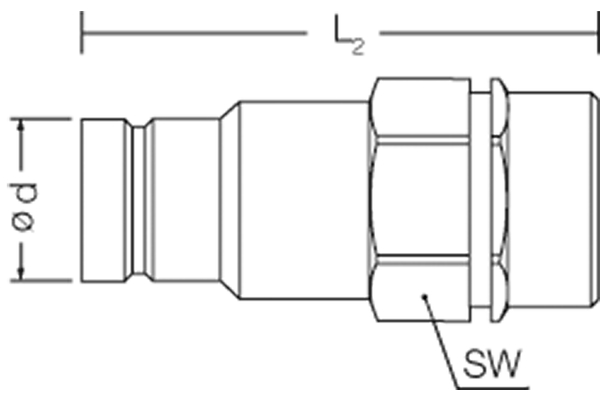

  Outer Ø plug [mm]:	30,0
  Length plug [mm]:	93,8
  Wrench size connection side plug:	41
  SW [mm]:	41
  Wrench size connection side sleeve:	41
  SW1 [mm]:	41
  l/min at ΔP=2 bar:	200
  Material:	C45

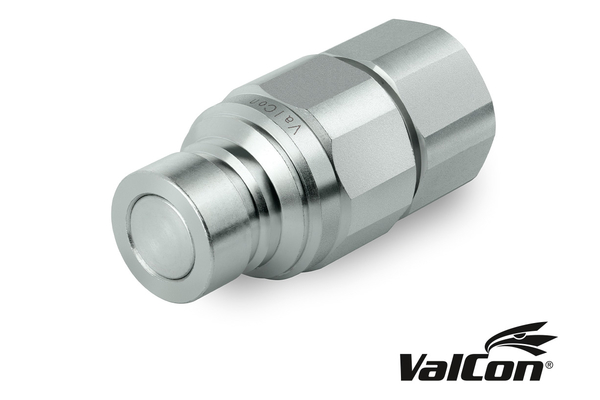

  Product title long:	Series VC-FF male coupling  (ISO 16028).
  Product title short:	male coupling
