VC-FF-IG3/4-16S

Product info

• Technical data

  Size:	4
  DN:	16
  Size:	10
  Inch:	5/8
  working pressure [bar]:	250
  Thread + standard:	BSP internal thread DIN 3852
  Thread [GA]:	3/4

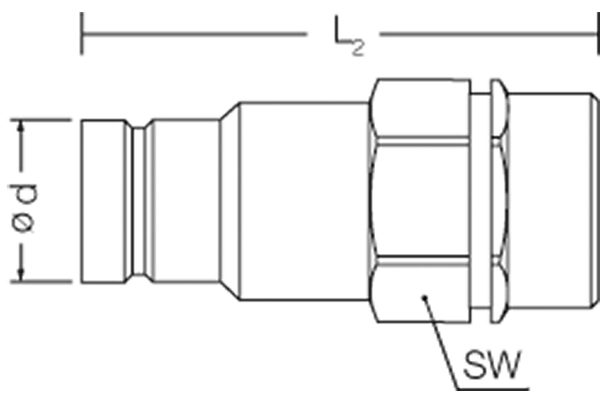

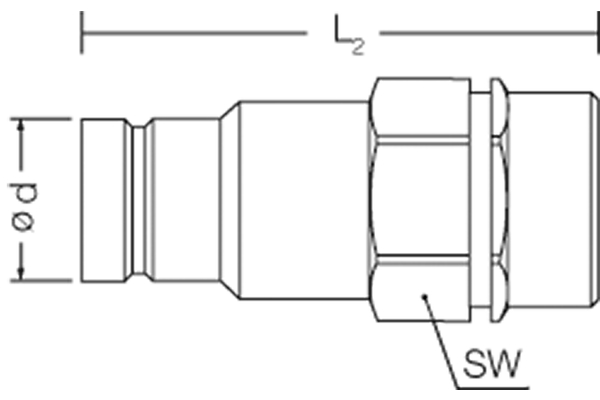

  Outer Ø plug [mm]:	27,0
  Length plug [mm]:	75,5
  Wrench size connection side plug:	36
  SW [mm]:	36
  Wrench size connection side sleeve:	36
  SW1 [mm]:	36
  l/min at ΔP=2 bar:	120
  Material:	C45

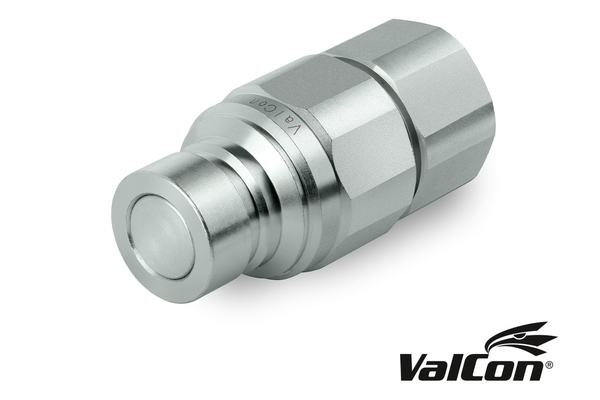

  Product title long:	Series VC-FF male coupling (ISO 16028).
  Product title short:	male coupling
