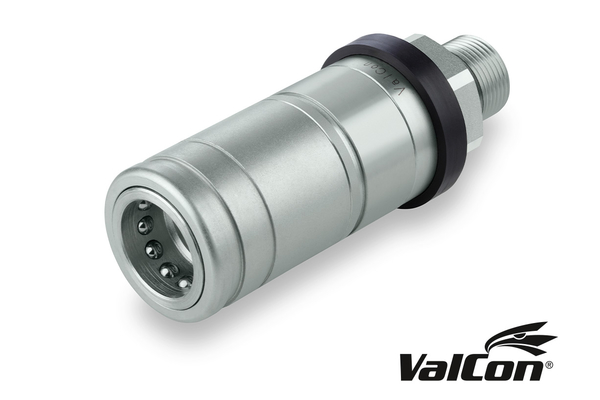

VC-AGRI-CELS15-12M
Valcon® Plug-in coupling series VC-AGRI Female

Product info

• Technical data

  Size:	3
  DN:	12
  Size:	08
  Inch:	1/2
  working pressure [bar]:	250
  Thread + standard:	Metric bulkhead ISO 8434-1-L
  Thread [GA]:	M22x1,5

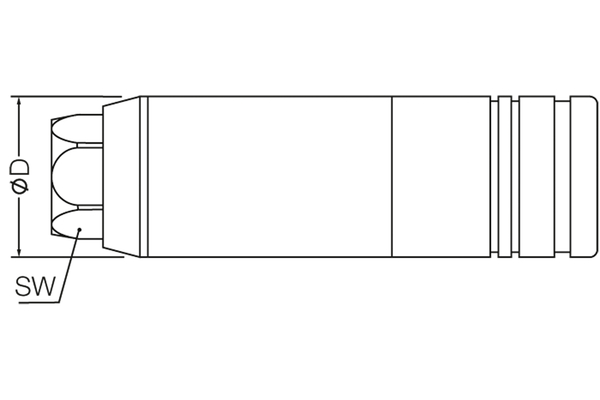

  Outer Ø sleeve [mm]:	38,0
  Length sleeve [mm]:	124,1
  SW [mm]:	32
  SW2 [mm]:	27
  Can be coupled under pressure:	Allowed - male half
  SW1 [mm]:	32
  l/min at ΔP=2 bar:	60
  Applications:	Agriculture
  Female or male coupling:	Female
  Material Casing:	Steel
  Material sealing:	NBR
  Resistance against red rust [h]:	400
  Resistance against white rust [h]:	200
  Standard:	ISO 7241-A
  Surface:	Cr III
  Temperature range [°C]:	-30°C up to +120°C
