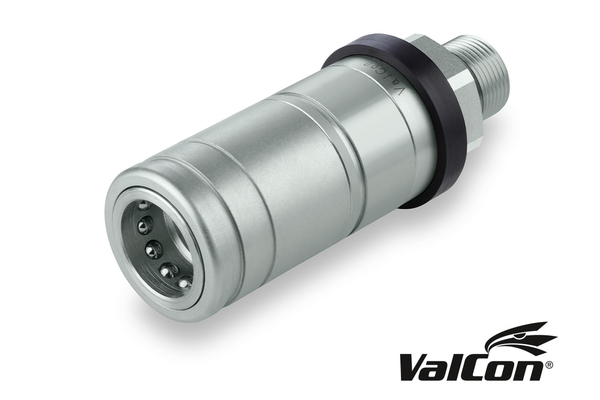

Valcon® VC-AGRI female coupling

Push-pull female couplings for agriculture. Can be coupled with a male half in DN12 according to ISO 7241-A. The plug can be coupled, under pressure, with the VC-AGRI sleeve.

To accessories

Detail

Art. No.

VC-AGRI-IG1/2-12M

VC-AGRI-CELS15-12M

VC-AGRI-AG15MO-12M

Size

Inch

1/2

working pressure [bar]

250

Thread + standard

BSP female-thread ISO 1179-1

Metric bulkhead ISO 8434-1-L

Metric screw-in thread with elastic seal ISO 9974-2

Thread [GA]

1/2"

M22x1,5

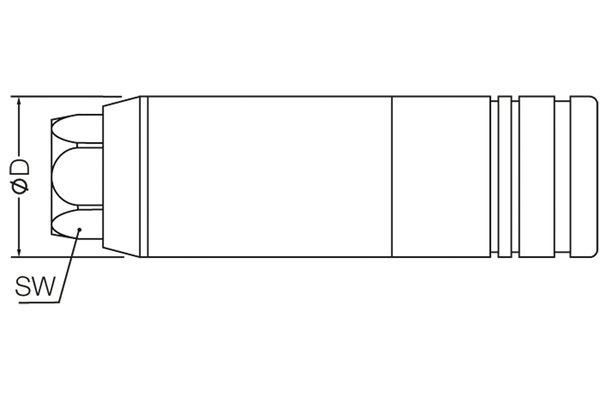

Outer Ø sleeve [mm]

38,0

Length sleeve [mm]

111,2

124,1

110,7

SW [mm]

SW2 [mm]

Can be coupled under pressure

Allowed - male half

Allowed - Male half

SW1 [mm]

l/min at ΔP=2 bar

Quantity

Product info

Technical data

Applications:	Agriculture
Female or male coupling:	Female
Material Casing:	Steel
Material sealing:	NBR
Resistance against red rust [h]:	400
Resistance against white rust [h]:	200
Standard:	ISO 7241-A
Surface:	Cr III
Temperature range [°C]:	-30°C up to +120°C

Benefit

Push-pull coupling, connectable with male under residual pressure. Breakaway function. Can be screwed directly into valve ports or rigid pipes. ISO 7241 part A interchange.
