Art. No.: VC-ISO-A-IG1/2-12M
List number: 22900460

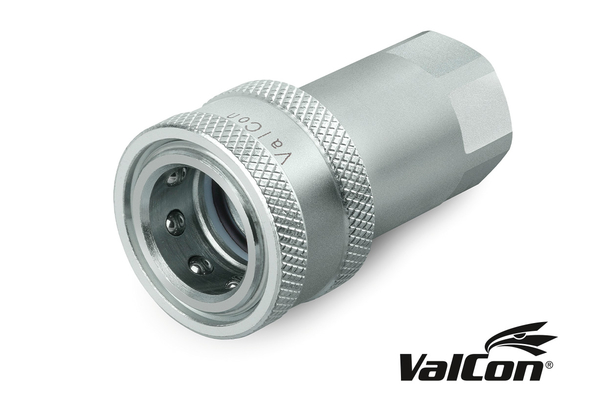

Reference couplings for agricultural applications, but also used extensively in construction and industry. Sealing system with cone valve. Connection not permitted under pressure. Interchangeability according to ISO 7241-A standard.
| DN: | 12 |
| Size: | 08 |
| Inch: | 1/2 |
| working pressure [bar]: | 300 |
| Thread + standard: | BSP female-thread ISO 1179-1 |
| Thread [GA]: | 1/2 |
| Outer Ø sleeve [mm]: | 38,5 |
| Length sleeve [mm]: | 66,0 |
| SW [mm]: | 27 |
| SW1 [mm]: | 27 |
| l/min at ΔP=2 bar: | 50 |
| Product title long: | . |
Reserve technical changes.
