Product info
-
Technical data

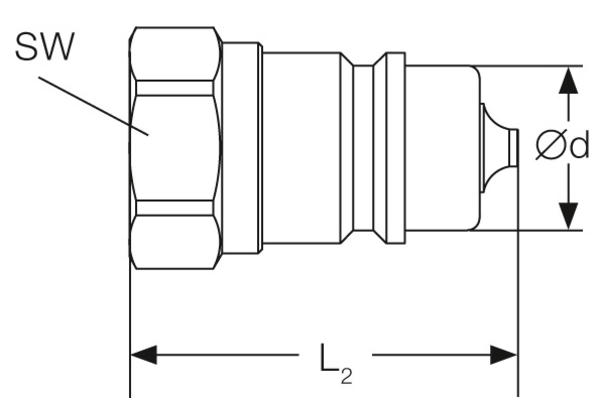

DN: 20 Size: 12 Inch: 3/4 working pressure [bar]: 250 Thread + standard: BSP female-thread ISO 1179-1 Thread [GA]: 3/4 Outer Ø plug [mm]: 29,0 Length plug [mm]: 57,0 SW [mm]: 35 SW1 [mm]: 35 l/min at ΔP=2 bar: 100 Product title long: .
