Product info
-
Technical data

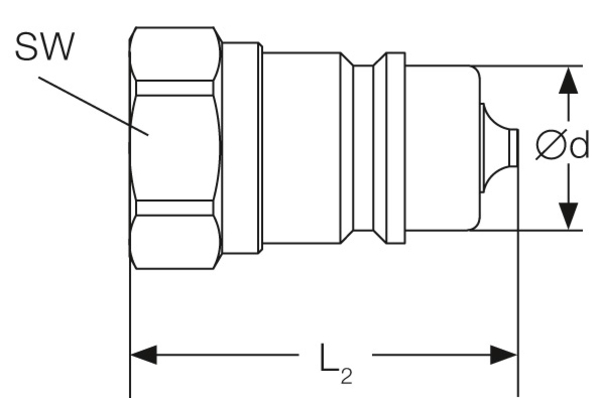

DN: 10 Size: 06 Inch: 3/8 working pressure [bar]: 300 Thread + standard: BSP female-thread ISO 1179-1 Thread [GA]: 3/8 Outer Ø plug [mm]: 17,3 Length plug [mm]: 36,5 SW [mm]: 22 SW1 [mm]: 22 l/min at ΔP=2 bar: 28 Product title long: .
