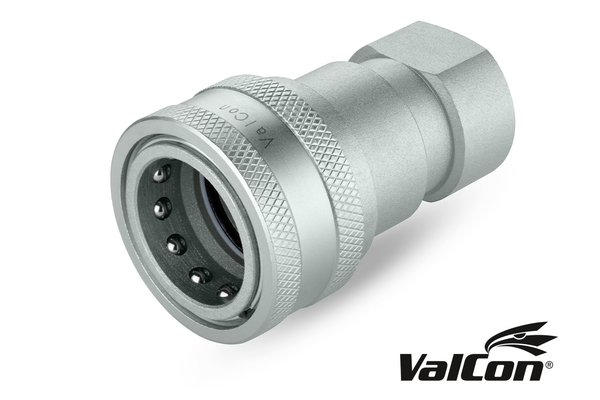

VC-ISO-B-IG1/4-06M
Valcon® Plug-in coupling series VC-ISO-B female

Product info

• Technical data

  Size:	1
  DN:	06
  Size:	04
  Inch:	1/4
  working pressure [bar]:	350
  Thread + standard:	BSP female-thread ISO 1179-1
  Thread [GA]:	1/4"

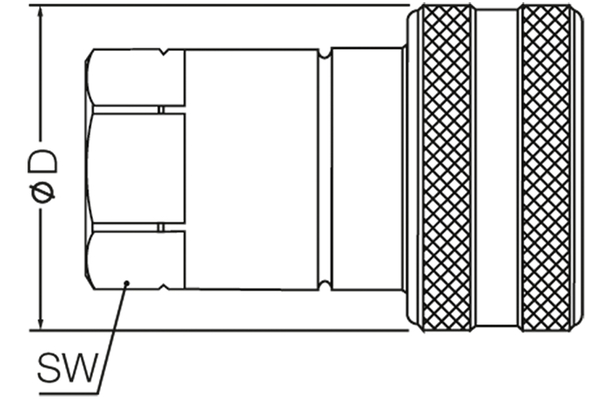

  Outer Ø sleeve [mm]:	28,5
  Length sleeve [mm]:	58,0
  SW [mm]:	19
  SW1 [mm]:	19
  Applications:	Industrial, Oil & Gas
  Female or male coupling:	Female
  Material Casing:	Steel
  Material sealing:	NBR
  Resistance against red rust [h]:	400
  Resistance against white rust [h]:	200
  Standard:	ISO 7241-1B
  Surface:	Chrome III
  Temperature range [°C]:	-20°C up to +120°C
