Art. No.: RV22GE1LR/KÖ/ED
List number: 12384780

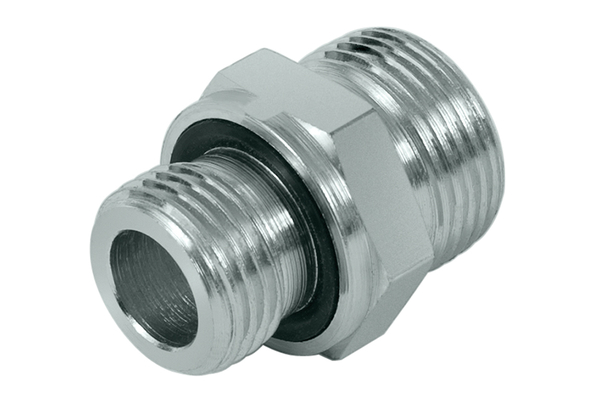

Straight screw-in connection, with elastic seal, inch
| working pressure [bar]: | 160 |
| burst pressure [bar]: | 640 |
| Pipe Ø R [mm]: | 22 |
| Thread [G1]: | M30x2 |
| Thread [G2]: | G 1" |
| Series: | L |
| SW1 [mm]: | 41 |
| Connection type 1: | Metric 24° |
| Connection type 2: | Imperial |
| Construction form: | Straight |
| Description: | Straight screw-in fitting, soft-sealing |
| Material: | ST-l |
| Resistance against red rust [h]: | 1000 |
| Resistance against white rust [h]: | 500 |
| Surface: | zinc plated, chrom 6-free |
Reserve technical changes.
