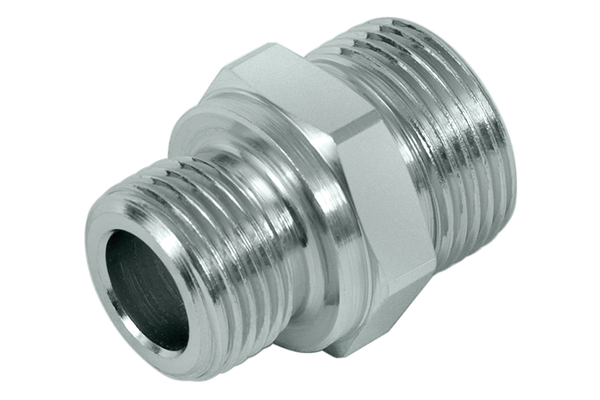

RV10GE1/4LR/K/KÖ
Screw-in connection GE (inch)

Product info

• Technical data

  working pressure [bar]:	315
  burst pressure [bar]:	1260
  Pipe Ø R [mm]:	10

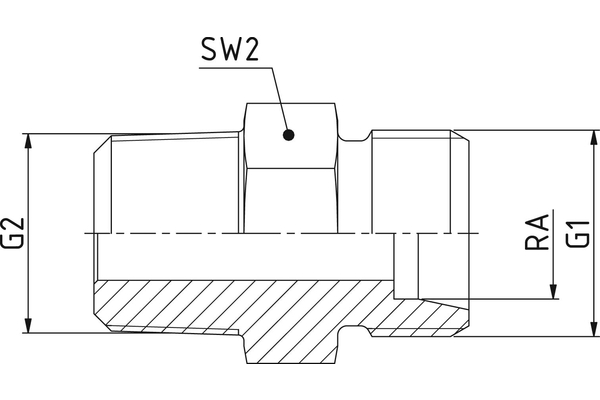

  Thread [G1]:	M16x1,5
  Thread [G2]:	R 1/4" K
  Series:	L
  SW1 [mm]:	17
  SW2 [mm]:	19
  Connection type 1:	Metric 24°
  Connection type 2:	Inch cone-shaped
  Construction form:	Straight
  Description:	Straight screwed union, conical
  Material:	ST-l
  Resistance against red rust [h]:	1000
  Resistance against white rust [h]:	500
  Surface:	zinc plated, chrom 6-free
