Art. No.: RV04WE-LLM/K-KÖ
List number: 12409050

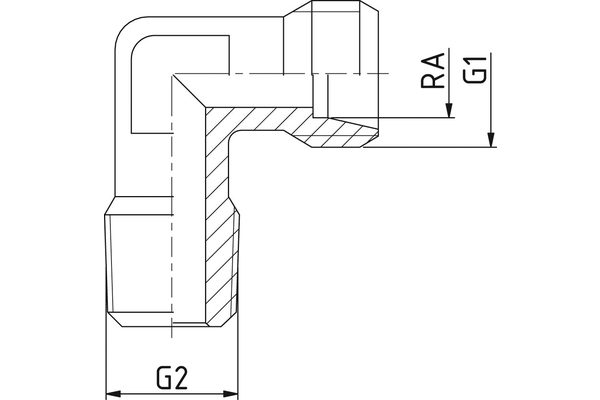

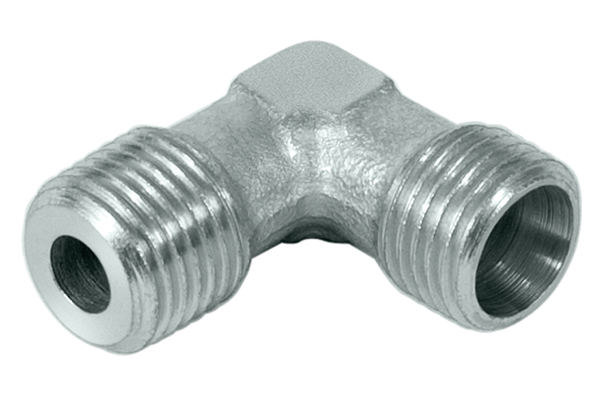

Angle screw-in connection, conical, metric
| working pressure [bar]: | 100 |
| burst pressure [bar]: | 400 |
| Pipe Ø R [mm]: | 4 |
| Thread [G1]: | M8x1 |
| Thread [G2]: | M8x1 K |
| Series: | LL |
| SW1 [mm]: | 9 |
| Connection type 1: | Metric 24° |
| Connection type 2: | Metric conical |
| Construction form: | Angle 90° |
| Description: | Angle screw-in connection, conical |
| Material: | ST-l |
| Resistance against red rust [h]: | 1000 |
| Resistance against white rust [h]: | 500 |
| Surface: | zinc plated, chrom 6-free |
Reserve technical changes.
