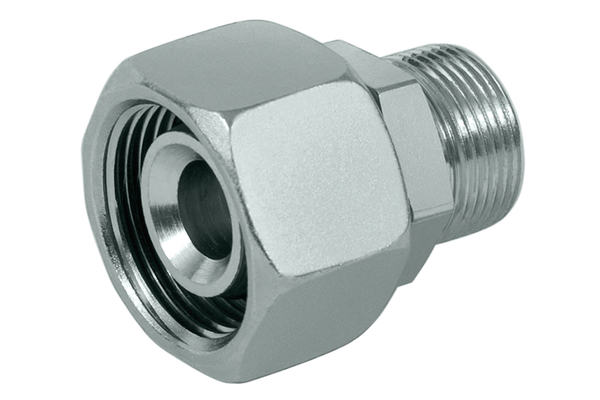

RV38/25RED-S/KÖ
Reducing connector - RED

Product info

• Technical data

  working pressure [bar]:	315
  burst pressure [bar]:	1260
  Pipe Ø R [mm]:	38/25
  Pipe-Ø [R1] [mm]:	38
  Pipe-Ø [R2] [mm]:	25
  Thread [G1]:	M52x2
  Thread [G2]:	M36x2
  Series:	S
  O-Ring 1:	33,3x2,4
  SW1 [mm]:	50
  SW2 [mm]:	60
  Connection type 1:	Metric 24°
  Connection type 2:	Metric 24°
  Construction form:	Straight
  Description:	Reducing fitting, O-ring sealing
  Material:	ST-l
  Resistance against red rust [h]:	1000
  Resistance against white rust [h]:	500
  Surface:	zinc plated, chrom 6-free
