Art. No.: RV15D/W-LM/KÖ/ED
List number: 12792040

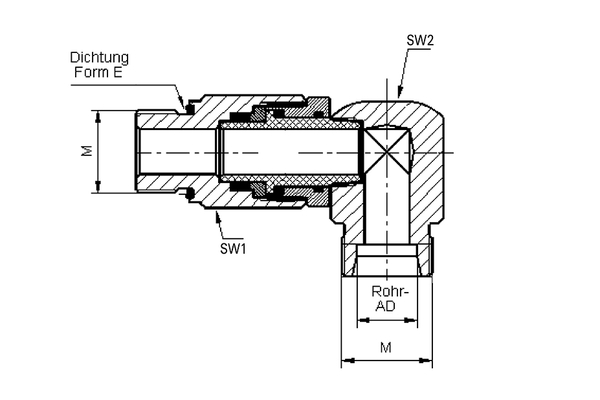

Angle screw-in union, rotating, only body, metric
| working pressure [bar]: | mind. 10 - max. 350 |
| Pipe Ø R [mm]: | 15 |
| Thread [G1]: | M22x1,5 |
| Thread [G2]: | M18x1,5 |
| Series: | L |
| SW1 [mm]: | 30 |
| SW2 [mm]: | 22 |
| Connection type 1: | Metric 24° |
| Connection type 2: | Metric |
| Construction form: | Angle 90° |
| Description: | Rotatable ball-threaded angle screw-in fitting, metric - soft-sealing |
| Material: | ST-l |
| Surface: | zinc plated, chrom 6-free |
| Temperature range [°C]: | -30° to +95°C |
Reserve technical changes.
