RV35GES/O-LR/ED

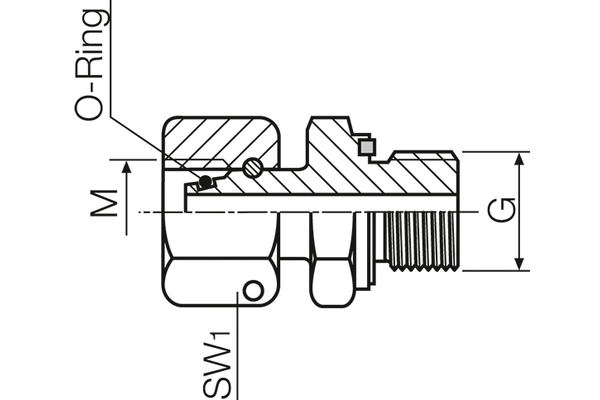

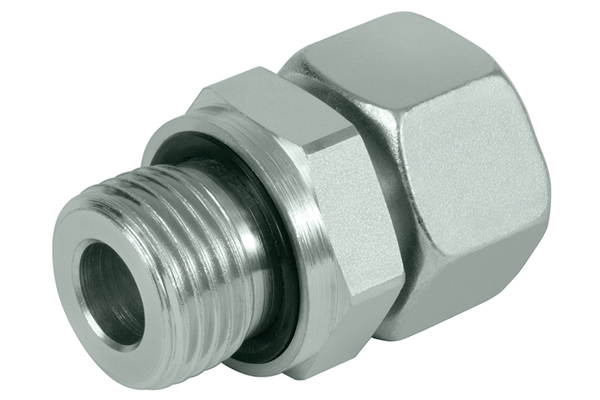

Straight male union with 24° DKO swivel GES/O/ED (inch)

Product info

• Technical data

  working pressure [bar]:	160
  burst pressure [bar]:	640
  Pipe Ø R [mm]:	35
  Thread [G1]:	M45x2
  Thread [G2]:	G 1.1/4"
  Series:	L
  O-Ring 1:	23x2,5
  SW1 [mm]:	50
  SW2 [mm]:	50
  Connection type 1:	Metric 24°
  Connection type 2:	Imperial
  Construction form:	Straight
  Material:	ST-l
  Resistance against red rust [h]:	1000
  Resistance against white rust [h]:	500
  Surface:	zinc plated, chrom 6-free
