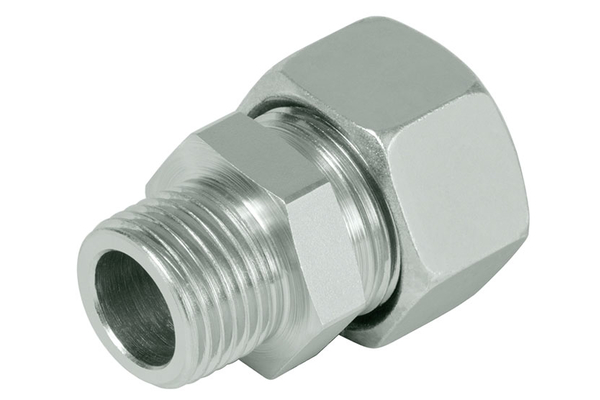

RV08GE-LLR/K

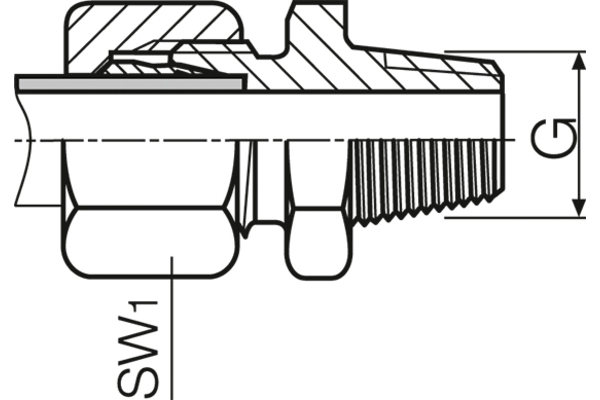

Screw-in connection GE/K (tapered)

Product info

• Technical data

  working pressure [bar]:	100
  burst pressure [bar]:	400
  Pipe Ø R [mm]:	8
  Thread [G1]:	M12x1
  Thread [G2]:	R 1/8" K
  Series:	LL
  SW1 [mm]:	12
  SW2 [mm]:	14
  Connection type 1:	Metric 24°
  Connection type 2:	Inch cone-shaped
  Construction form:	Straight
  Description:	Straight screwed union, conical
  Material:	ST-l
  Resistance against red rust [h]:	1000
  Resistance against white rust [h]:	500
  Surface:	zinc plated, chrom 6-free
