RV10TE/O-LR

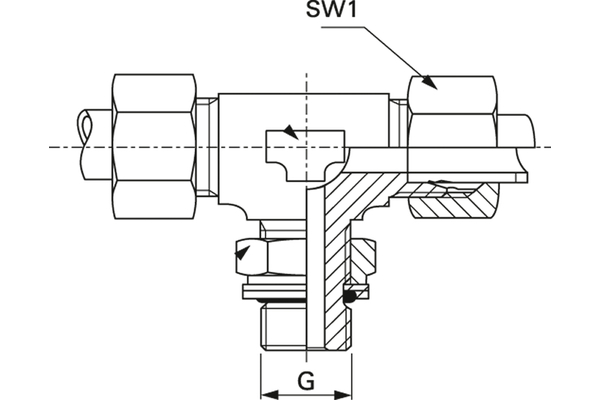

Adjustable T- union - TE/O

Product info

• Technical data

  working pressure [bar]:	315
  burst pressure [bar]:	1260
  Pipe Ø R [mm]:	10
  Thread [G1]:	M16x1,5
  Thread [G2]:	M16x1,5
  Thread [G3]:	G 1/4"
  Series:	L
  O-Ring 1:	10,77x2,62
  SW1 [mm]:	19
  SW2 [mm]:	19
  SW3 [mm]:	19
  Connection type 1:	Metric 24°
  Connection type 2:	Imperial
  Construction form:	T-shape
  Description:	Adjustable T-screw connection, with O-ring and locknut
  Material:	ST-l
  Resistance against red rust [h]:	1000
  Resistance against white rust [h]:	500
  Surface:	zinc plated, chrom 6-free
