Art. No.: RV30S35L-GVOK
List number: 12866040

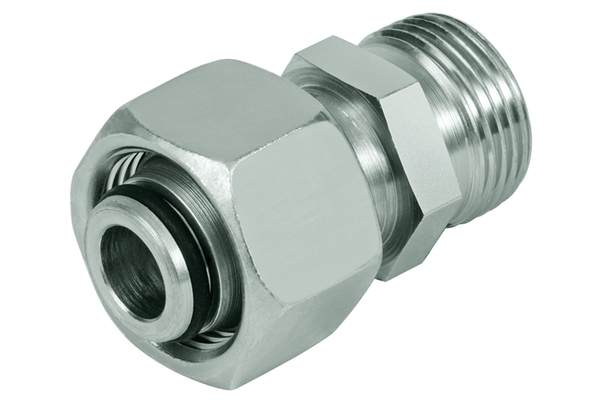

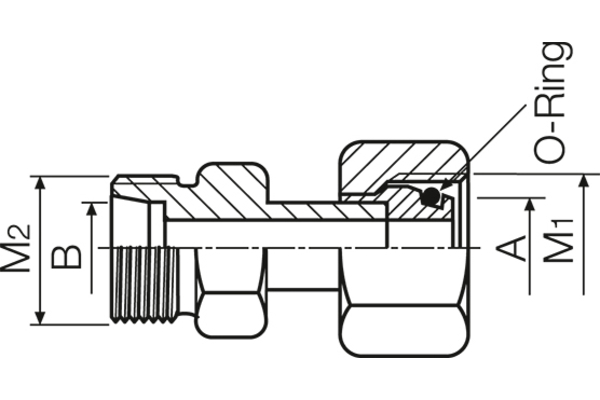

Straight reducing connector with 24°-conical nipple and o-ring, metric
| working pressure [bar]: | 160 |
| burst pressure [bar]: | 640 |
| Pipe Ø R [mm]: | 30/35 |
| Pipe-Ø [R1] [mm]: | 30 |
| Pipe-Ø [R2] [mm]: | 35 |
| Thread [G1]: | M42x2 |
| Thread [G2]: | M45x2 |
| Series: | S/L |
| O-Ring 1: | 25,3 x 2,4 |
| Connection type 1: | Metric 24° |
| Connection type 2: | Metric 24° |
| Construction form: | Straight |
| Description: | Double connector, pre-assembled on one side with O-ring |
| Material: | ST-l |
| Surface: | zinc plated, chrom 6-free |
Reserve technical changes.
