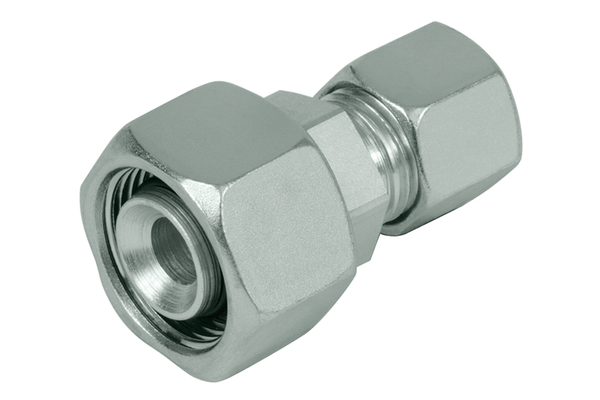

RV14/08RED-S
Reducing connector - RED

Product info

• Technical data

  working pressure [bar]:	630
  burst pressure [bar]:	2520
  Pipe Ø R [mm]:	14/8
  Pipe-Ø [R1] [mm]:	14
  Pipe-Ø [R2] [mm]:	8
  Thread [G1]:	M22x1,5
  Thread [G2]:	M16x1,5
  Series:	S
  O-Ring 1:	10x2
  SW1 [mm]:	19
  SW2 [mm]:	27
  SW3 [mm]:	19
  Connection type 1:	Metric 24°
  Connection type 2:	Metric 24°
  Construction form:	Straight
  Description:	Reducing fitting, O-ring sealing
  Material:	ST-l
  Resistance against red rust [h]:	1000
  Resistance against white rust [h]:	500
  Surface:	zinc plated, chrom 6-free
