RX-BTH08-6
SAE blind plate / SAE blind plug

Product info

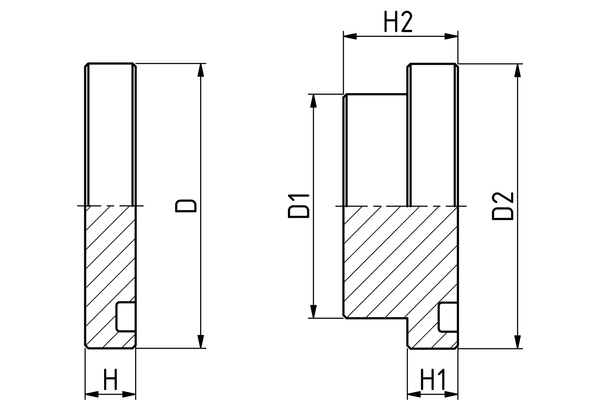

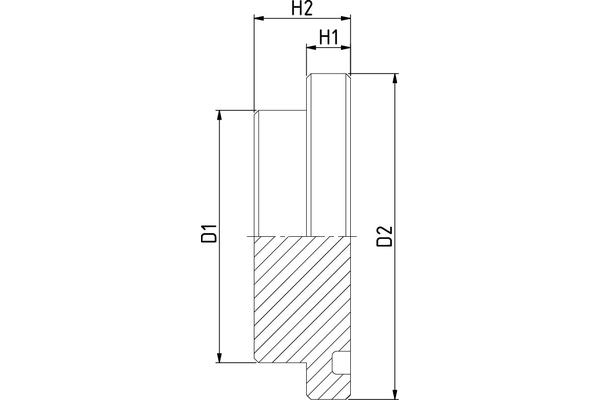

• Technical data

  DN:	12
  Size:	08
  Inch:	1/2
  Flange size D2:	6.000 psi
  D [mm]:	31,8
  L1 [mm]:	18,0
  L [mm]:	7,8
  C [mm]:	24,0
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	XV, HV, HI, HAN, VC
