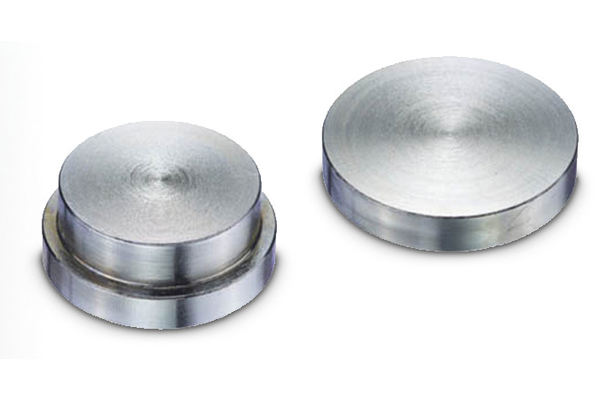

RX-BTH12-6
SAE blind plate / SAE blind plug

Product info

• Technical data

  DN:	19
  Size:	12
  Inch:	3/4
  Flange size D2:	6.000 psi

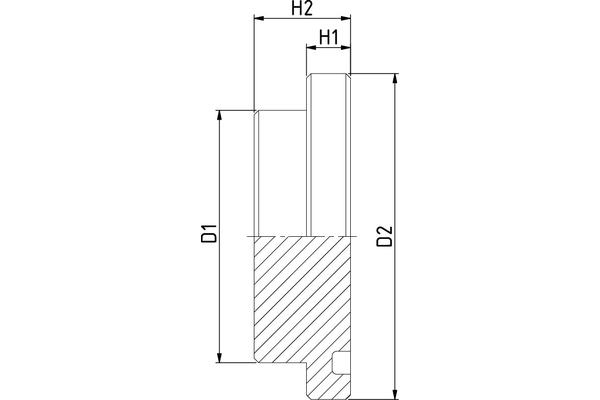

  D [mm]:	41,3
  L1 [mm]:	21,0
  L [mm]:	8,8
  C [mm]:	32,0
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	XV, HV, HI, HAN, VC
