RX-BTH24-3

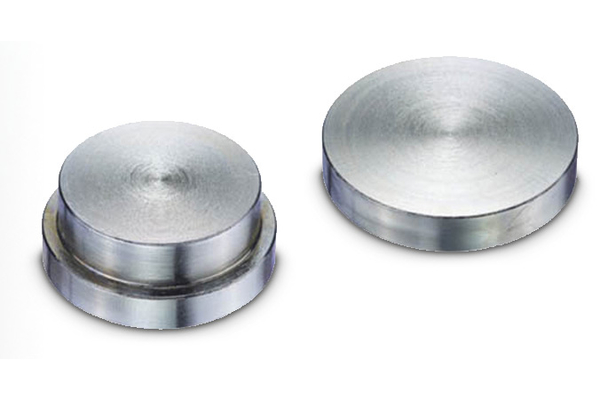

SAE blind plate / SAE blind plug

Product info

• Technical data

  DN:	38
  Size:	24
  Inch:	1.1/2
  Flange size D2:	3.000 psi
  D [mm]:	60,35
  L1 [mm]:	18,0
  L [mm]:	8,0
  C [mm]:	50,0
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	XV, HV, HI, HAN, VC
