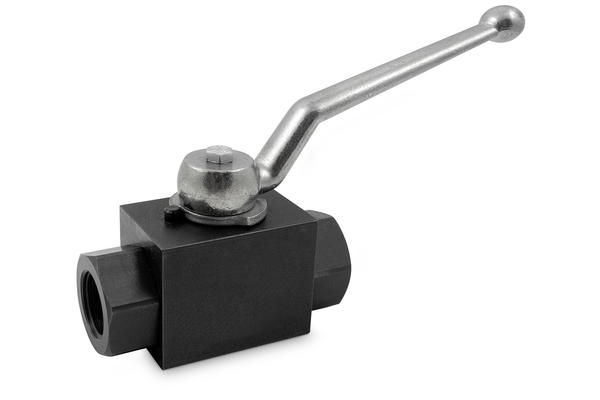

KHB-G112I-25
Ball valve, block design

Product info

• Technical data

  DN:	40/25
  working pressure [bar]:	400
  Thread + standard:	Whitworth-Pipe thread (BSP), DIN EN ISO 228-1
  Thread [GA]:	G 1.1/2
  Pipe Ø R [mm]:	-
  L [mm]:	139
  Lever length [R] [mm]:	187
  B [mm]:	55
  H1 [mm]:	26
  H [mm]:	60
  GL [mm]:	22
  Material Casing:	steel
  Material switching ball:	Stahl, hartverchromt
  Material switching ball sealing:	POM
  Material switching shaft:	steel
  Material switching shaft sealing:	NBR
  Product title short:	2-way ball valves
