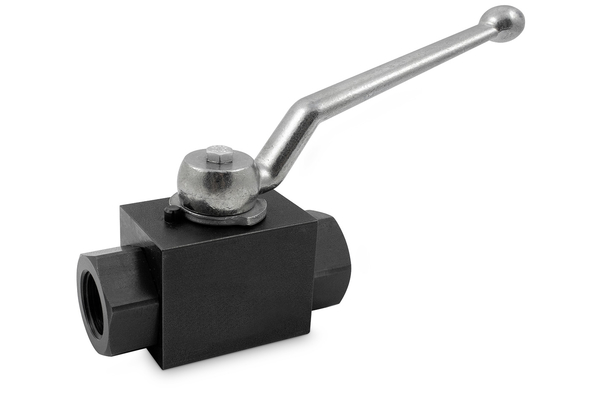

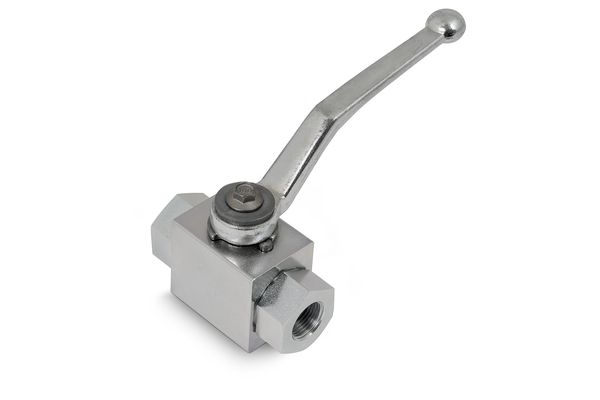

2-way ball valves, pipe connection, BSP female thread

Similar image
Similar image

2/2-way version

To accessories

Detail

Art. No.
KHB-G18I-4
%
SALE
KHB-G14I-6
%
SALE
KHB-G38I-10
%
SALE
KHB-G12I-12
%
SALE
KHB-G34I-20
%
SALE
KHB-G1I-25
%
SALE
KHB-G114I-25
%
SALE
KHB-G112I-25
%
SALE
DN
4
6
10
12
20
25
32/25
40/25
working pressure [bar]
500
500
500
500
400
400
400
400
Thread + standard
Whitworth-Pipe thread (BSP), DIN EN ISO 228-1
Whitworth-Pipe thread (BSP), DIN EN ISO 228-1
Whitworth-Pipe thread (BSP), DIN EN ISO 228-1
Whitworth-Pipe thread (BSP), DIN EN ISO 228-1
Whitworth-Pipe thread (BSP), DIN EN ISO 228-1
Whitworth-Pipe thread (BSP), DIN EN ISO 228-1
Whitworth-Pipe thread (BSP), DIN EN ISO 228-1
Whitworth-Pipe thread (BSP), DIN EN ISO 228-1
Thread [GA]
G 1/8
G 1/4
G 3/8
G 1/2
G 3/4
G 1
G 1.1/4
G 1.1/2
Pipe Ø R [mm]
-
-
-
-
-
-
-
-
L [mm]
69
69
73
82
93
115
134
139
Lever length [R] [mm]
76
76
100
112
187
187
187
187
B [mm]
20
20
30
35
45
55
55
55
H1 [mm]
10
10
14,5
17
24
26
26
26
H [mm]
25
25
35
40
55
60
60
60
GL [mm]
12
12
14
15
18
18
20
22
Quantity


Product info

  • Technical data
    Material Casing: steel
    Material switching ball: Stahl, hartverchromt
    Material switching ball sealing: POM
    Material switching shaft: steel
    Material switching shaft sealing: NBR

Benefit

Please contact us for construction manuals (e.g. mounting holes)

Accessories

spare parts - such as operating lever and sealings you might find in the chapter accessories.

Practical tip

High pressure ball valves with floating ball guide:  2/2-way and 3/2-way ball valves with a floating ball may only be switched without pressure.
