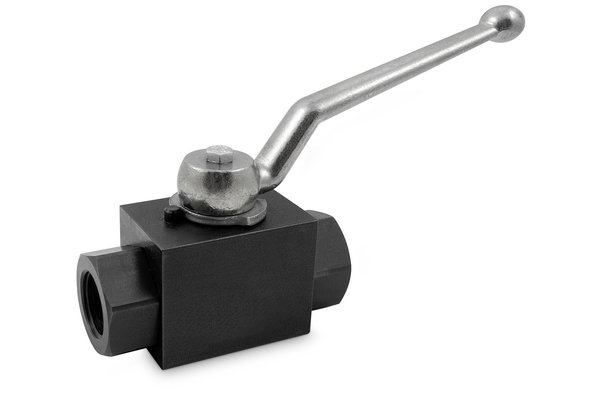

KHB-G38I-10
Ball valve, block design

Product info

• Technical data

  DN:	10
  working pressure [bar]:	500
  Thread + standard:	Whitworth-Pipe thread (BSP), DIN EN ISO 228-1
  Thread [GA]:	G 3/8
  Pipe Ø R [mm]:	-
  L [mm]:	73
  Lever length [R] [mm]:	100
  B [mm]:	30
  H1 [mm]:	14,5
  H [mm]:	35
  GL [mm]:	14
  Material Casing:	steel
  Material switching ball:	Stahl, hartverchromt
  Material switching ball sealing:	POM
  Material switching shaft:	steel
  Material switching shaft sealing:	NBR
  Product title short:	2-way ball valves
