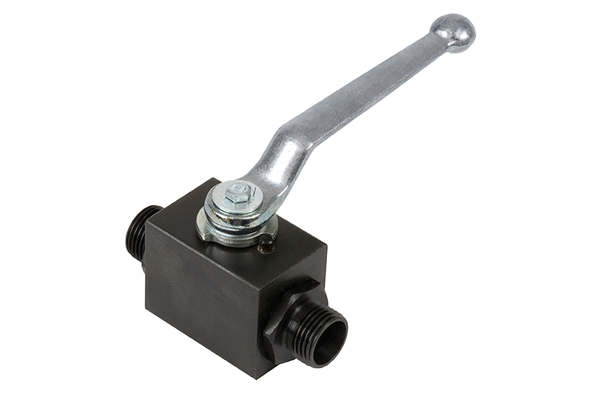

KHB-15L-12
Ball valve, block design

Product info

• Technical data

  DN:	12
  working pressure [bar]:	500
  Thread + standard:	solderless fittings, DIN 2353, light series, ISO 8434-1
  Thread [GA]:	M22x1.5
  Pipe Ø R [mm]:	15
  L [mm]:	83
  Lever length [R] [mm]:	112,0
  B [mm]:	35
  H1 [mm]:	17
  H [mm]:	45
  GL [mm]:	12
  Material Casing:	steel
  Material switching ball:	Stahl, hartverchromt
  Material switching ball sealing:	POM
  Material switching shaft:	steel
  Material switching shaft sealing:	NBR
  Product title short:	2-way ball valves
  Surface:	burnished
