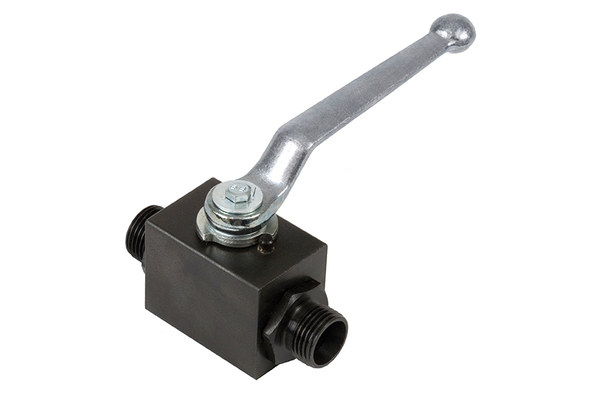

2-way ball valves, pipe connection, light series

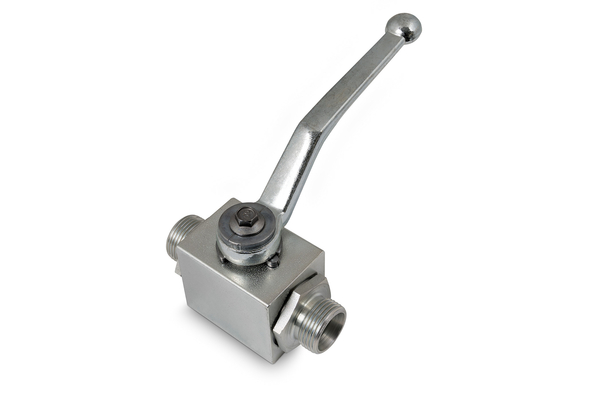

Similar image
Similar image

2/2-way version

To accessories

Detail

Art. No.
KHB-6L-4
%
SALE
KHB-8L-6
%
SALE
KHB-10L-8
%
SALE
KHB-12L-10
%
SALE
KHB-15L-12
%
SALE
KHB-18L-16
%
SALE
KHB-22L-20
%
SALE
KHB-28L-25
%
SALE
KHB-35L-25
%
SALE
KHB-42L-25
%
SALE
DN
4
6
8
10
12
16
20
25
32/25
40/25
working pressure [bar]
500
500
500
500
500
500
400
400
400
400
Thread + standard
solderless fittings, DIN 2353, light series, ISO 8434-1
solderless fittings, DIN 2353, light series, ISO 8434-1
solderless fittings, DIN 2353, light series, ISO 8434-1
solderless fittings, DIN 2353, light series, ISO 8434-1
solderless fittings, DIN 2353, light series, ISO 8434-1
solderless fittings, DIN 2353, light series, ISO 8434-1
solderless fittings, DIN 2353, light series, ISO 8434-1
solderless fittings, DIN 2353, light series, ISO 8434-1
solderless fittings, DIN 2353, light series, ISO 8434-1
solderless fittings, DIN 2353, light series, ISO 8434-1
Thread [GA]
M12x1.5
M14x1.5
M16x1.5
M18x1.5
M22x1.5
M26x1.5
M30x2
M36x2,0
M45x2,0
M52x2,0
Pipe Ø R [mm]
6
8
10
12
15
18
22
28
35
42
L [mm]
67
67
75
75
83
82
99
108
116
121
Lever length [R] [mm]
76,0
76,0
100,0
100,0
112,0
166,0
187,0
187,0
187,0
187,0
B [mm]
20
20
30
30
35
45
45
55
55
H1 [mm]
10
10
14,5
14,5
17
20
24
26
26
H [mm]
25
25
35
35
45
45
55
60
60
GL [mm]
10
10
11
11
12
12
14
16
16
Quantity


Product info

  • Technical data
    Material Casing: steel
    Material switching ball: Stahl, hartverchromt
    Material switching ball sealing: POM
    Material switching shaft: steel
    Material switching shaft sealing: NBR
    Surface: burnished

Benefit

Please contact us for construction manuals (e.g. mounting holes)

Accessories

spare parts - such as operating lever and sealings you might find in the chapter accessories.

Practical tip

High pressure ball valves with floating ball guide:  2/2-way and 3/2-way ball valves with a floating ball may only be switched without pressure.
