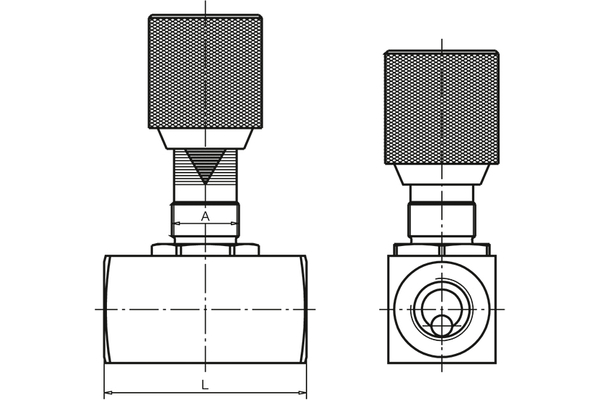

| DN: | 20 |
| working pressure [bar]: | 350 |
| Thread + standard: | Whitworth-Pipe thread (BSP), DIN EN ISO 228-1 |
| L1 [mm]: | 16,0 |
| Thread [G1]: | G 3/4 |
| Thread [G2]: | G 3/4 |
| Fastening thread: | M22x1,5 |
| Thread [G]: | G 3/4 |
| H1 [mm]: | 22,5 |
| H2 [mm]: | 52 |
| B [mm]: | 45 |
| Material rotary knob: | aluminium |
| Material spindle: | steel |

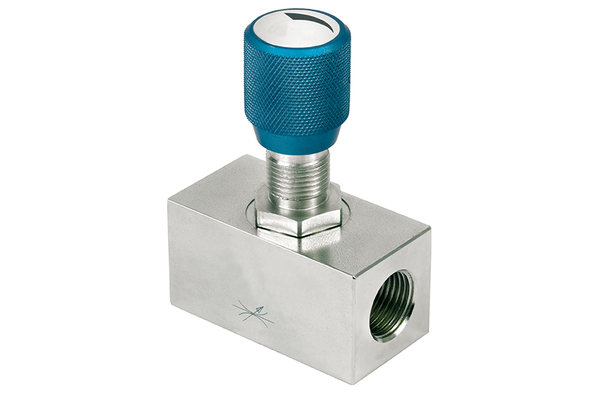

| Product title short: | throttle valve |
Reserve technical changes.
