KHM-42L-40
2-way ball valve

Product info

• Specifications

  DN:	40
  working pressure [bar]:	400
  Thread + standard:	solderless fittings, DIN 2353, light series, ISO 8434-1
  Thread [GA]:	M52x2
  Pipe Ø R [mm]:	42

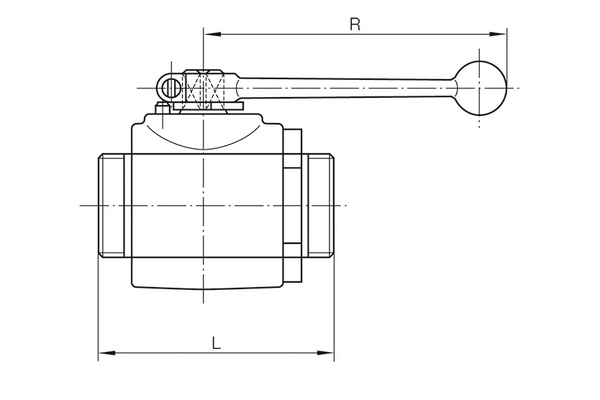

  L [mm]:	118
  Lever length [R] [mm]:	211
  B [mm]:	85
  SW [mm]:	75
  SW1 [mm]:	17
  H1 [mm]:	42,5
  H [mm]:	90
  GL [mm]:	16
  Material Casing:	steel
  Material switching ball:	Stahl, hartverchromt
  Material switching ball sealing:	POM
  Material switching shaft:	steel
  Material switching shaft sealing:	NBR
  Product title short:	2-way socket ball cock
