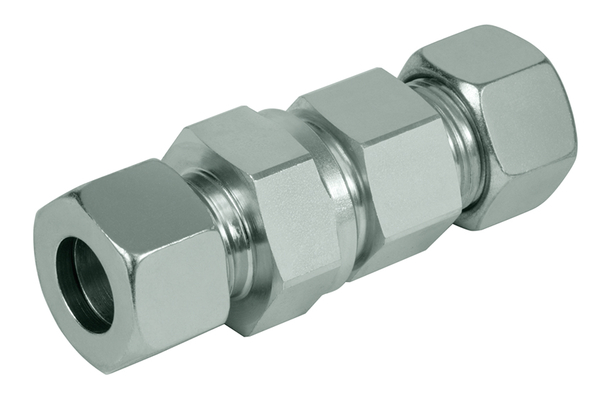

RV06RHD-S

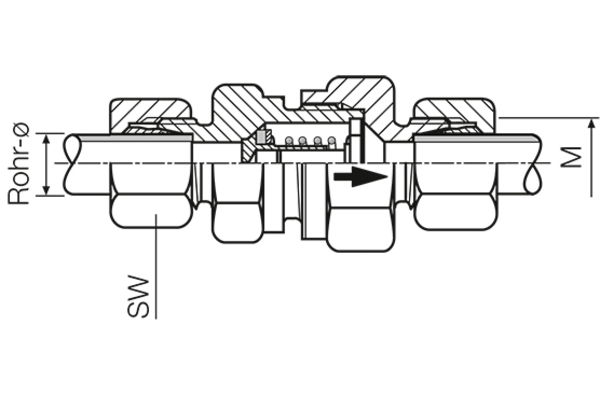

RHD with cutting ring connection (metric, heavy series)

Product info

• Technical data

  working pressure [bar]:	400
  Thread + standard:	solderless fittings, DIN 2353, heavy series, ISO 8434-1
  Thread [GA]:	M14x1,5
  Pipe Ø R [mm]:	6
  Thread [G1]:	M 14x1,5
  Thread [G2]:	M 14x1,5
  Series:	S
  Opening pressure [bar]:	1 bar +/- 20%
  Connection type 1:	metric 24°
  Connection type 2:	metric 24°
  Construction form:	check valves
  Material:	ST-l
  Note:	opening pressure 1 Bar
  Product title short:	RHD
  Surface:	zinc plated, chrom 6-free
