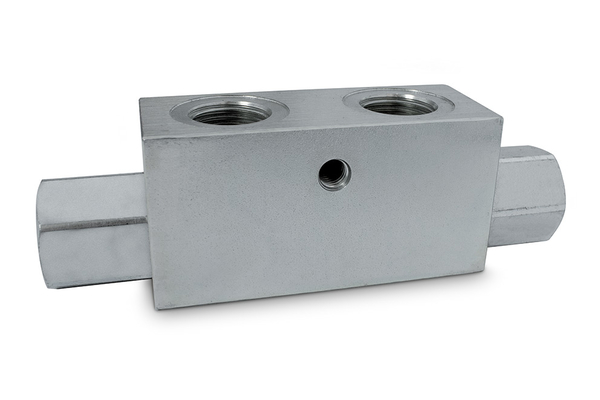

RSV-DW-18L

Product info

• Technical data

  working pressure [bar]:	350
  Thread + standard:	M18x1,5 L
  Fastening thread:	M18x1,5 L
  Weight [kg]:	0,630

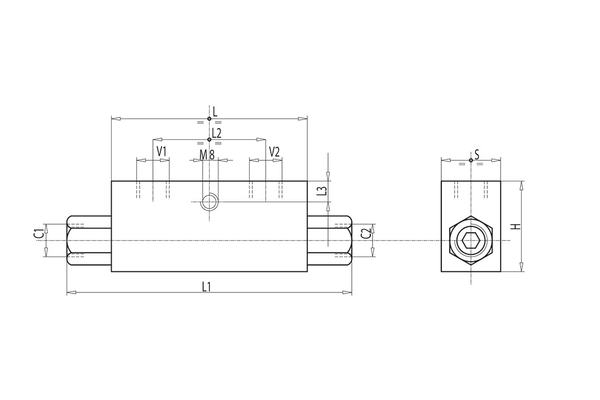

  L1 [mm]:	118
  max flow [ltr / min]:	35
  Opening pressure [bar]:	4
  H [mm]:	40
  pilot ratio:	1:5,5

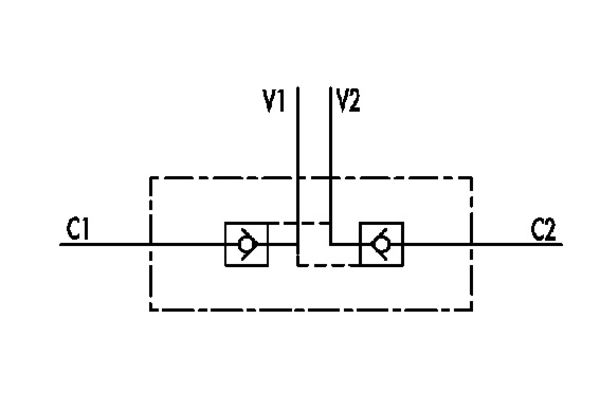

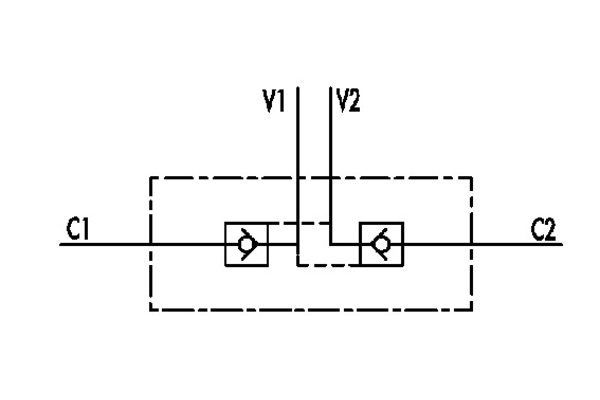

  V1-V2 C1-C2 [GAS - MET]:	M18x1,5 L
  L [mm]:	68
  S [mm]:	30
  L2 [mm]:	38
  L3 [mm]:	8
