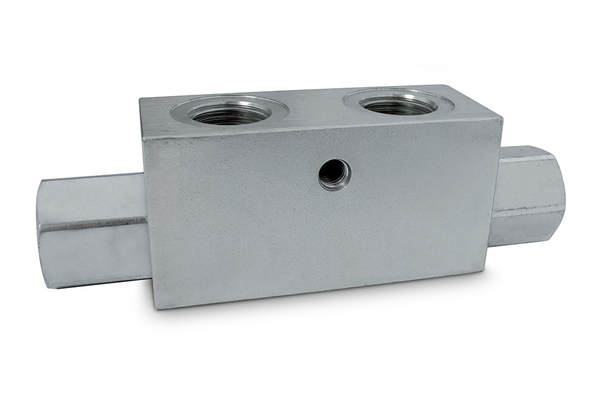

RSV-DW-3/8

Product info

• Technical data

  working pressure [bar]:	350
  Thread + standard:	G 3/8"
  Fastening thread:	3/8"
  Weight [kg]:	1,174

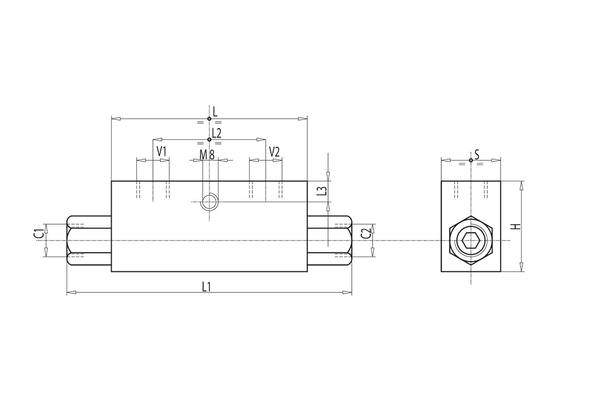

  L1 [mm]:	156
  max flow [ltr / min]:	45
  Opening pressure [bar]:	8
  H [mm]:	45
  pilot ratio:	1:5

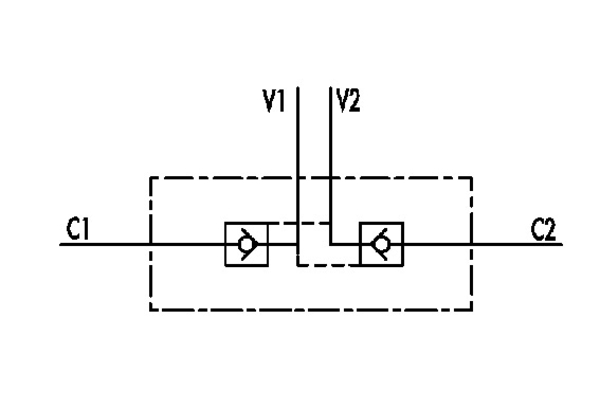

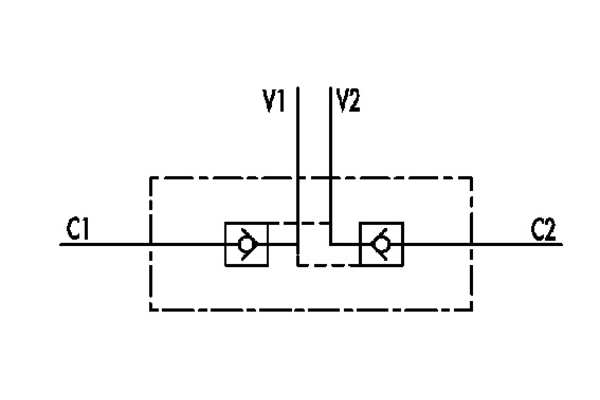

  V1-V2 C1-C2 [GAS - MET]:	G 3/8"
  L [mm]:	90
  S [mm]:	35
  L2 [mm]:	45
  L3 [mm]:	12,5
