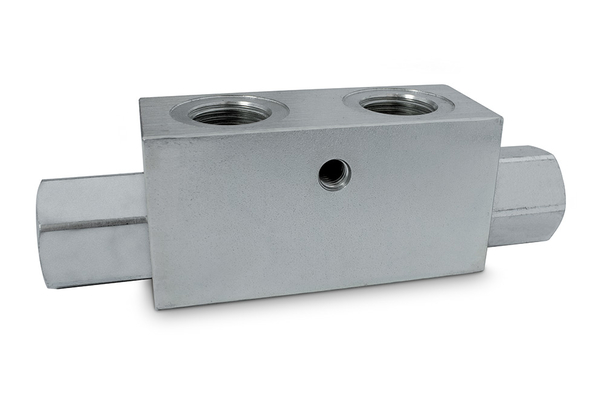

RSV-DW-3/8-L

Product info

• Technical data

  working pressure [bar]:	350
  Thread + standard:	G 3/8" L
  Fastening thread:	3/8" L
  Weight [kg]:	0,736

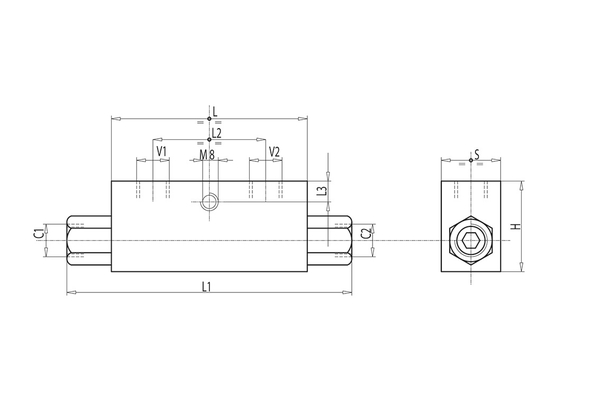

  L1 [mm]:	128
  max flow [ltr / min]:	35
  Opening pressure [bar]:	3
  H [mm]:	40
  pilot ratio:	1:5,5
  V1-V2 C1-C2 [GAS - MET]:	G 3/8" L
  L [mm]:	80
  S [mm]:	30
  L2 [mm]:	38
  L3 [mm]:	8
