RSV-EW-1/2-L4

Product info

• Technical data

  working pressure [bar]:	350
  Thread + standard:	BSP
  Thread [G1]:	1/2"
  Thread [G2]:	1/2"
  Fastening thread:	1/2" L
  Weight [kg]:	0,94

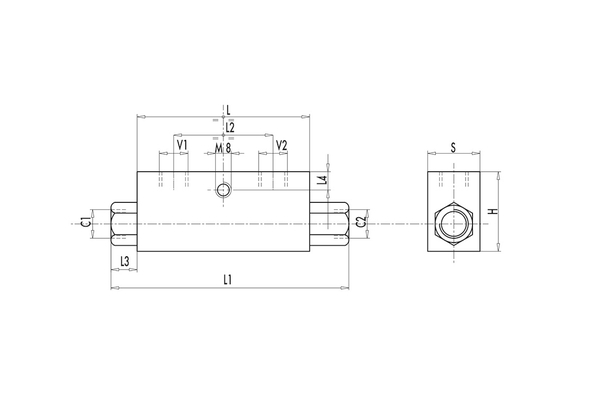

  L1 [mm]:	133
  max flow [ltr / min]:	50
  Opening pressure [bar]:	6
  H [mm]:	45
  pilot ratio:	1:5

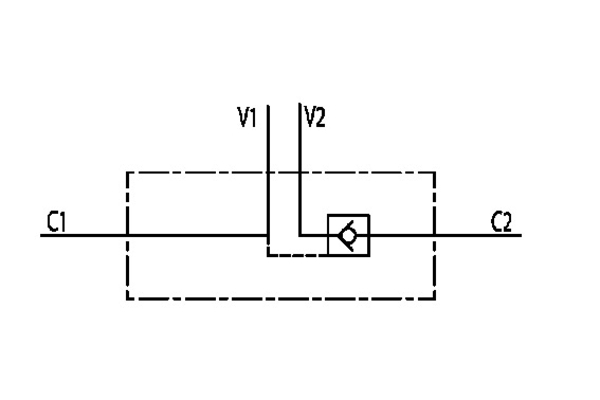

  V1-V2 C1-C2 [GAS - MET]:	G 1/2" L
  L [mm]:	90
  S [mm]:	35
  L2 [mm]:	45
  L3 [mm]:	17
  L4 [mm]:	12,5
