RSV-EW-3/4

Product info

• Technical data

  working pressure [bar]:	350
  Thread + standard:	BSP
  Thread [G1]:	3/4"
  Thread [G2]:	3/4"
  Fastening thread:	3/4"
  Weight [kg]:	1,792

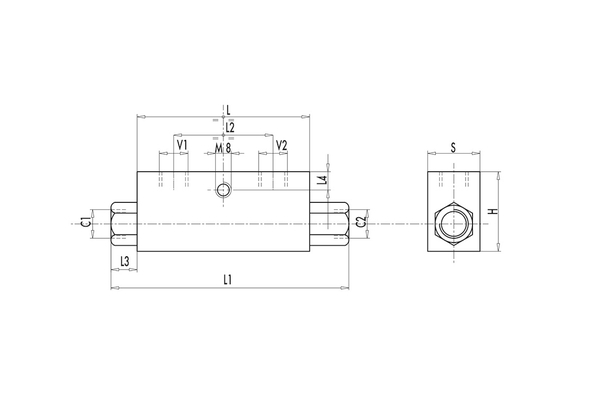

  L1 [mm]:	182
  max flow [ltr / min]:	100
  Opening pressure [bar]:	2
  H [mm]:	60
  pilot ratio:	1:4
  V1-V2 C1-C2 [GAS - MET]:	G 3/4"
  L [mm]:	100
  S [mm]:	40
  L2 [mm]:	46
  L3 [mm]:	36
  L4 [mm]:	12
