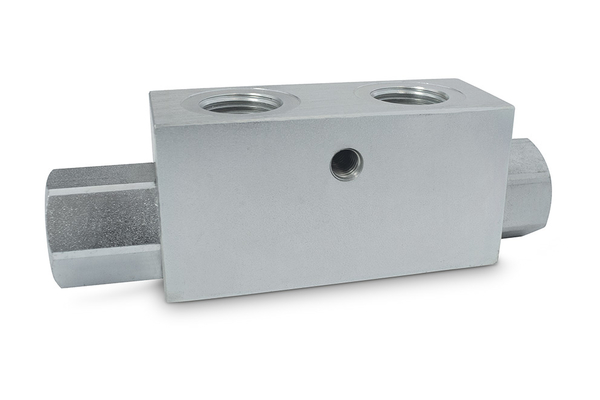

RSV-EW-3/8-L4

Product info

• Technical data

  working pressure [bar]:	350
  Thread + standard:	BSP
  Thread [G1]:	3/8"
  Thread [G2]:	3/8"
  Fastening thread:	3/8" L
  Weight [kg]:	0,706

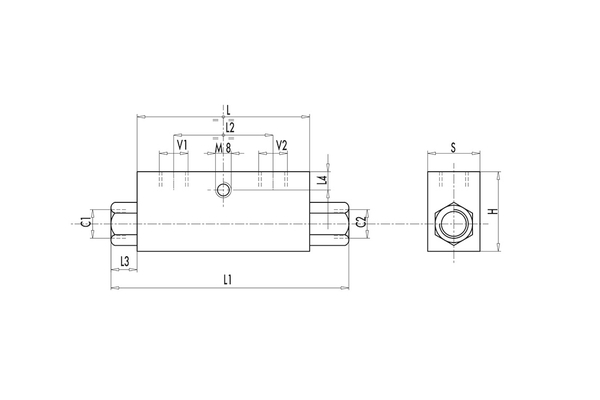

  L1 [mm]:	120
  max flow [ltr / min]:	35
  Opening pressure [bar]:	3
  H [mm]:	40
  pilot ratio:	1:5,5

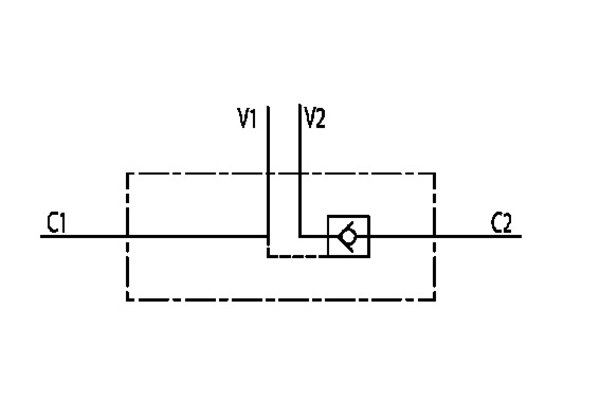

  V1-V2 C1-C2 [GAS - MET]:	G 3/8" L
  L [mm]:	80
  S [mm]:	30
  L2 [mm]:	38
  L3 [mm]:	16
  L4 [mm]:	8
