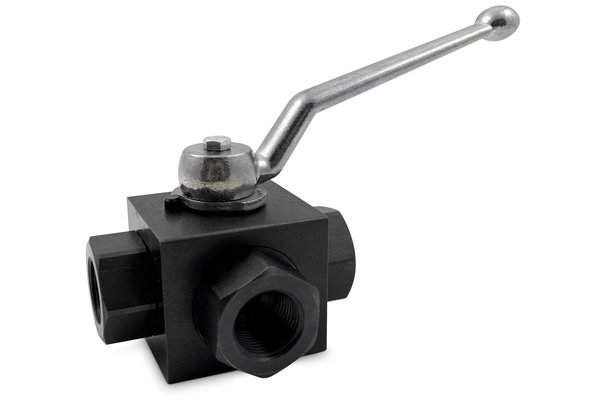

KHU3-G12I-12-L
Directional ball valve

Product info

• Technical data

  DN:	12
  working pressure [bar]:	500
  Thread + standard:	Whitworth-Pipe thread (BSP), DIN EN ISO 228-1
  Thread [GA]:	G 1/2

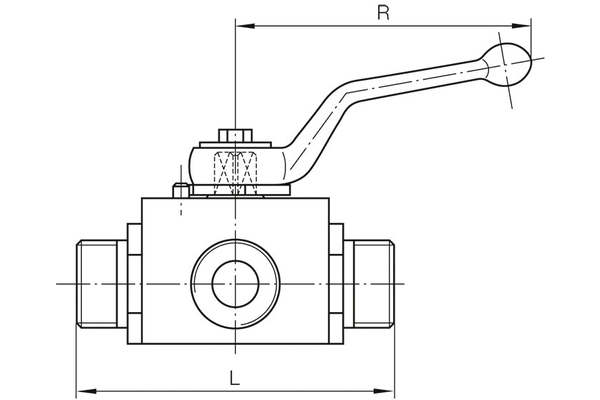

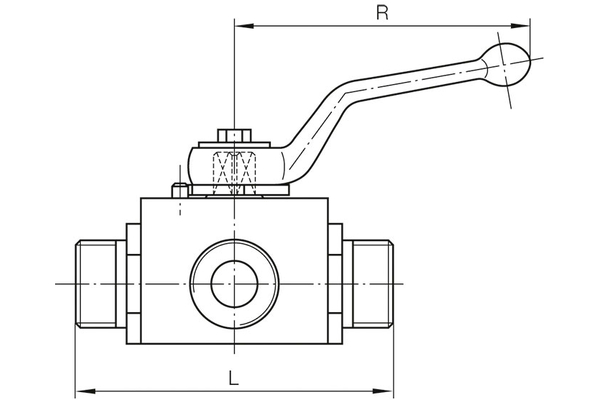

  L [mm]:	82
  B [mm]:	45
  SW [mm]:	30
  SW1 [mm]:	10
  H1 [mm]:	22,0
  H [mm]:	45

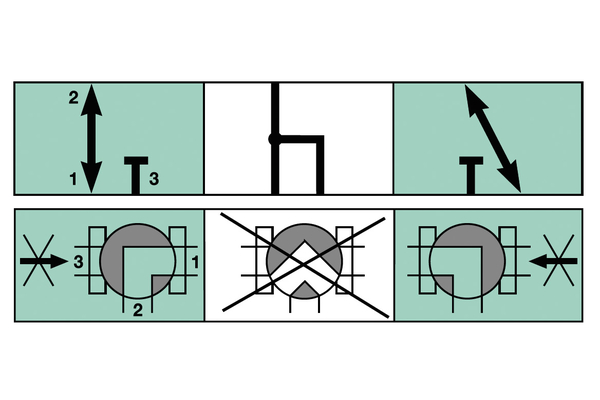

  Bore hole:	L
  GL [mm]:	15
  Material Casing:	steel
  Material switching ball:	Stahl, hartverchromt
  Material switching ball sealing:	POM
  Material switching shaft:	steel
  Material switching shaft sealing:	NBR
  Product title short:	Directional ball valve 3/2-ways
