KHU3-G18I-4-L

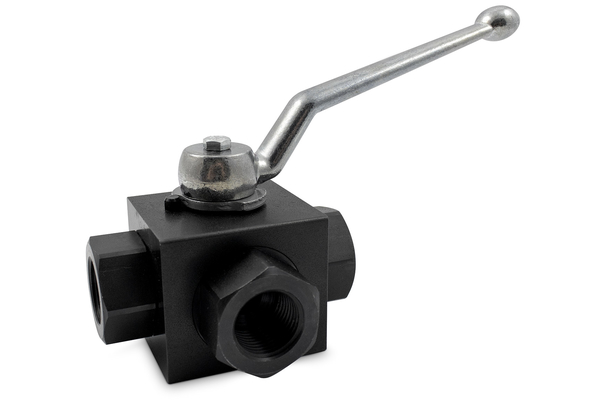

Directional ball valve

Product info

• Technical data

  DN:	4
  working pressure [bar]:	500
  Thread + standard:	Whitworth-Pipe thread (BSP), DIN EN ISO 228-1
  Thread [GA]:	G 1/8

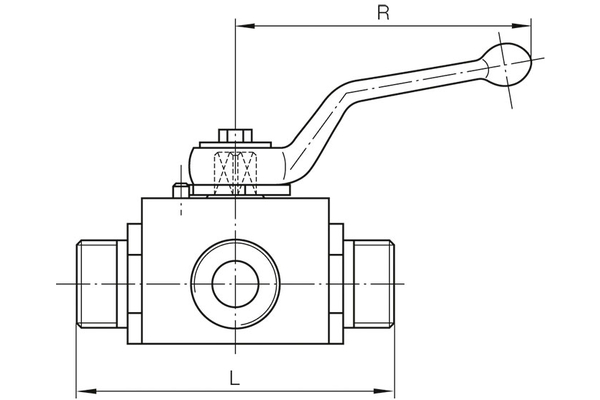

  L [mm]:	69
  B [mm]:	30
  SW [mm]:	19
  SW1 [mm]:	7
  H1 [mm]:	15,0
  H [mm]:	30
  Bore hole:	L
  GL [mm]:	12
  Material Casing:	steel
  Material switching ball:	Stahl, hartverchromt
  Material switching ball sealing:	POM
  Material switching shaft:	steel
  Material switching shaft sealing:	NBR

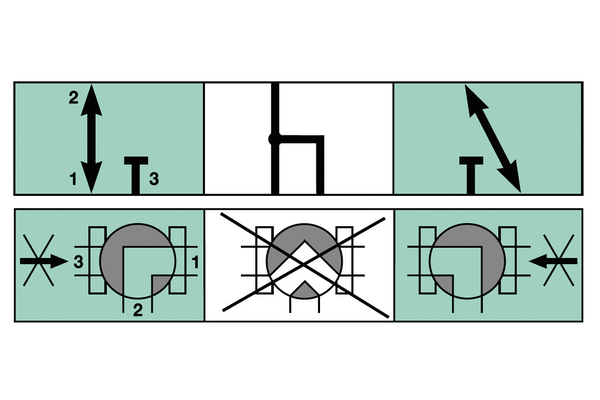

  Product title short:	Directional ball valve 3/2-ways
