KHU3-G34I-20-T

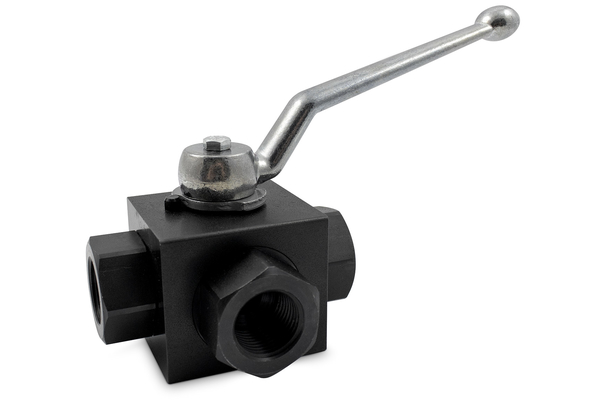

Directional ball valve

Product info

• Technical data

  DN:	20
  working pressure [bar]:	400
  Thread + standard:	Whitworth-Pipe thread (BSP), DIN EN ISO 228-1
  Thread [GA]:	G 3/4

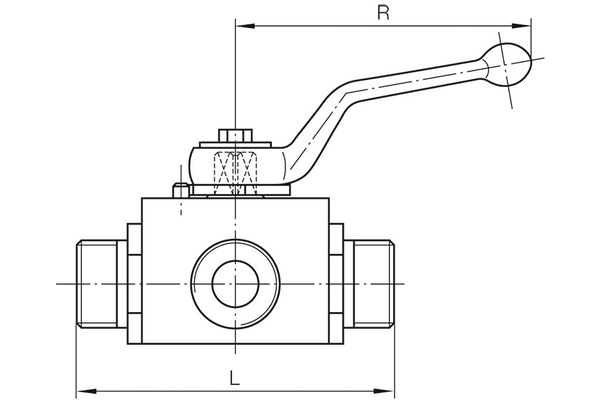

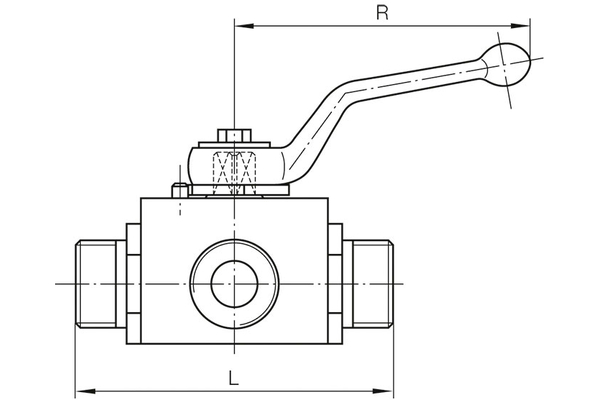

  L [mm]:	93
  B [mm]:	55
  SW [mm]:	41
  SW1 [mm]:	14
  H1 [mm]:	29,0
  H [mm]:	60

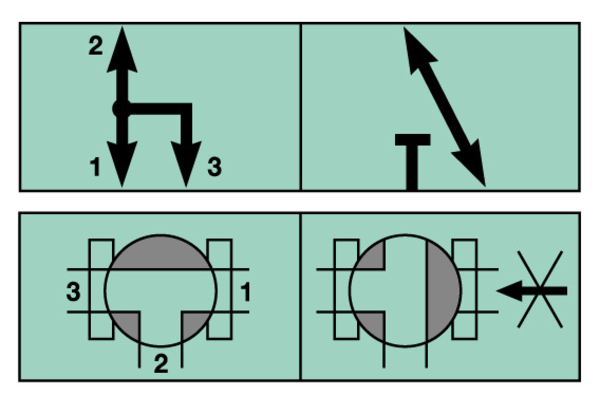

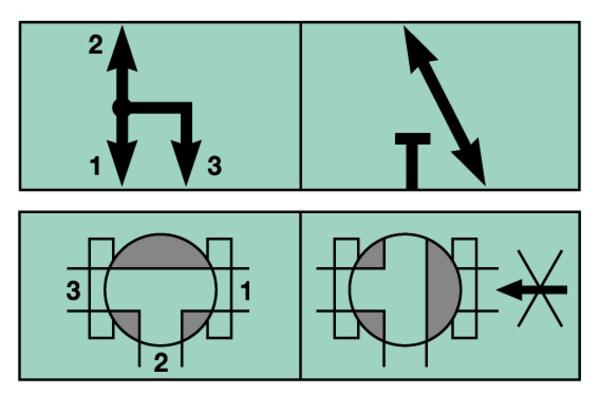

  Bore hole:	T
  GL [mm]:	18
  Material Casing:	steel
  Material switching ball:	Stahl, hartverchromt
  Material switching ball sealing:	POM
  Material switching shaft:	steel
  Material switching shaft sealing:	NBR
  Product title short:	Directional ball valve 3/2-ways
