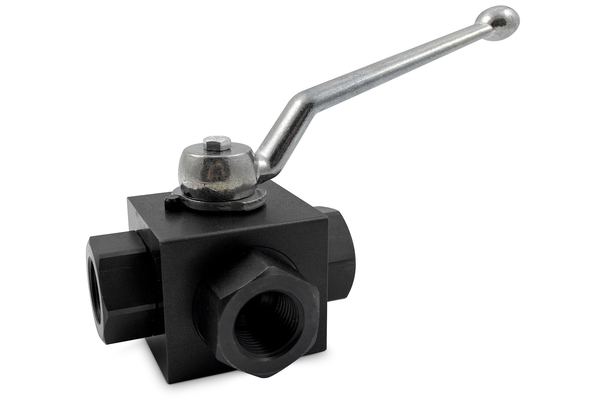

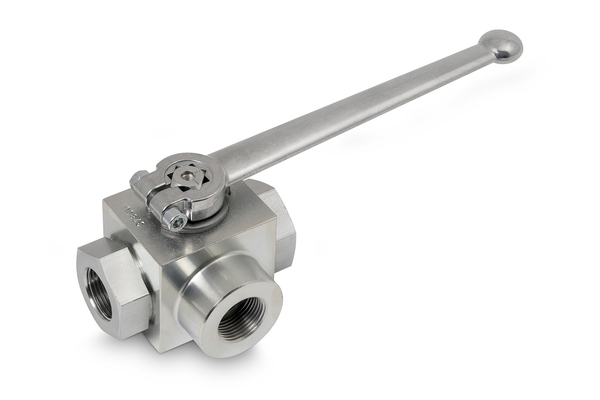

KHU3-G38I-10-T
Directional ball valve

Product info

• Technical data

  DN:	10
  working pressure [bar]:	500
  Thread + standard:	Whitworth-Pipe thread (BSP), DIN EN ISO 228-1
  Thread [GA]:	G 3/8

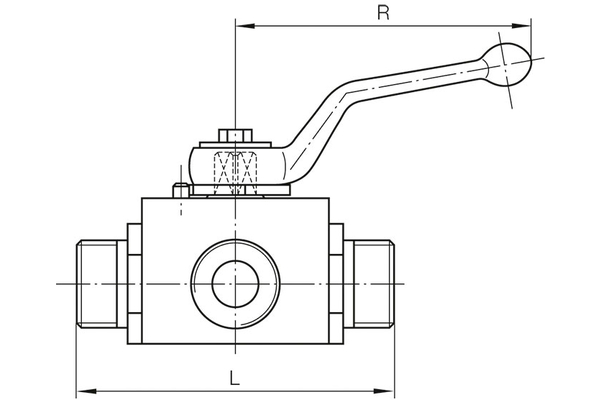

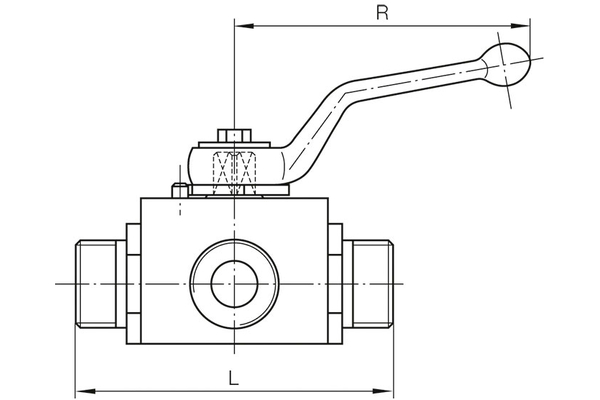

  L [mm]:	73
  B [mm]:	40
  SW [mm]:	24
  SW1 [mm]:	8
  H1 [mm]:	14,5
  H [mm]:	35

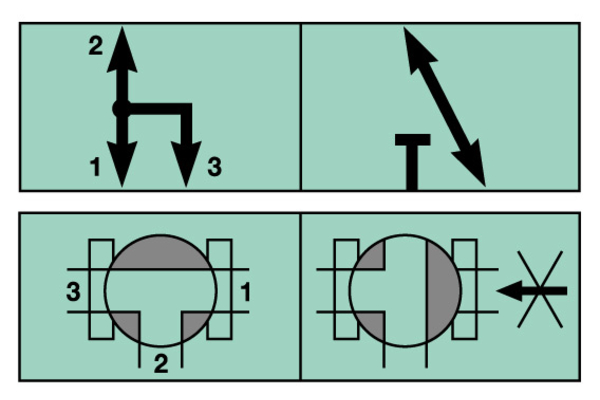

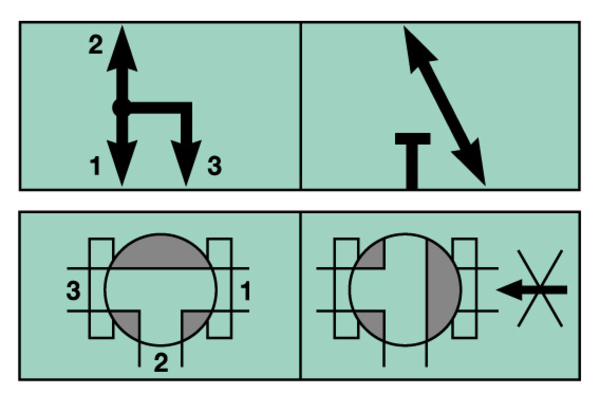

  Bore hole:	T
  GL [mm]:	14
  Material Casing:	steel
  Material switching ball:	Stahl, hartverchromt
  Material switching ball sealing:	POM
  Material switching shaft:	steel
  Material switching shaft sealing:	NBR
  Product title short:	Directional ball valve 3/2-ways
