KHU3-18L-16-T
Directional ball valve

Product info

• Technical data

  DN:	16
  working pressure [bar]:	400
  Thread + standard:	solderless fittings, DIN 2353, light series, ISO 8434-1
  Thread [GA]:	M26x1,5
  Pipe Ø R [mm]:	18

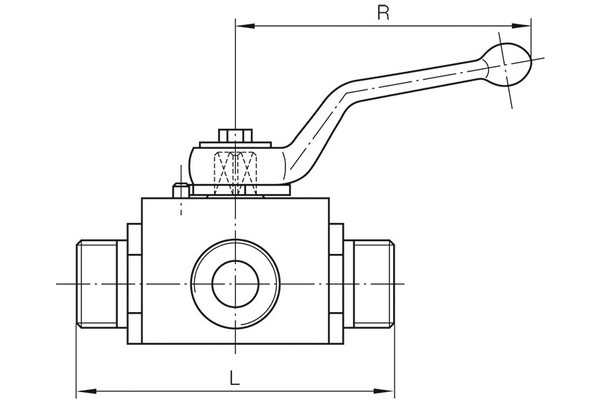

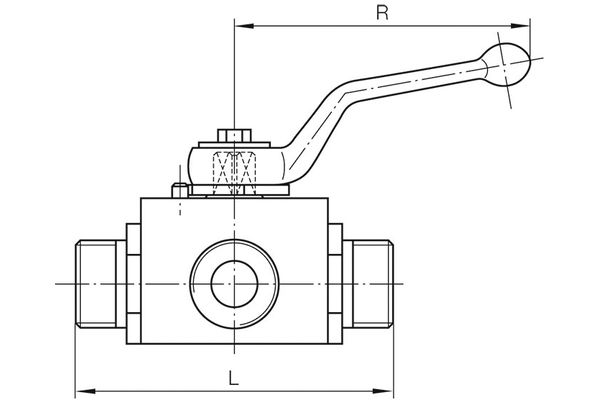

  L [mm]:	82
  Lever length [R] [mm]:	166
  B [mm]:	50
  SW [mm]:	36
  SW1 [mm]:	10
  H1 [mm]:	25,0
  H [mm]:	50

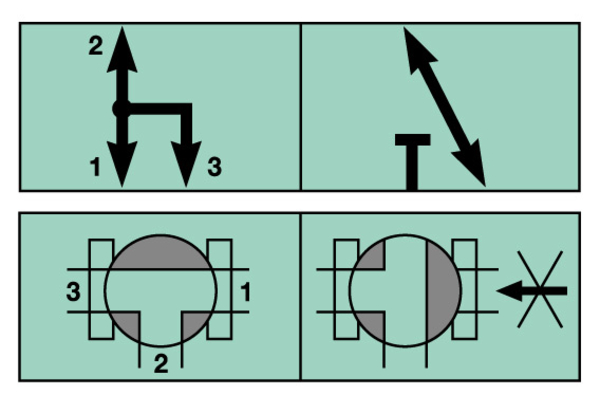

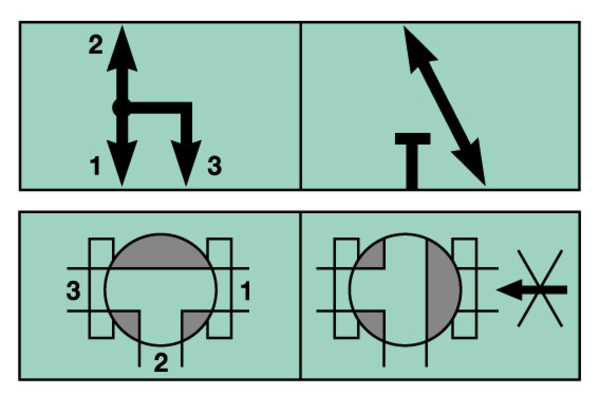

  Bore hole:	T
  GL [mm]:	12
  Material Casing:	steel
  Material switching ball:	Stahl, hartverchromt
  Material switching ball sealing:	POM
  Material switching shaft:	steel
  Material switching shaft sealing:	NBR
  Product title short:	Directional ball valve 3/2-ways
