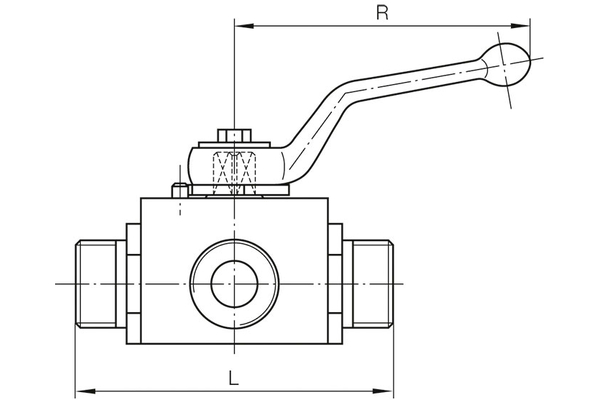

KHU3-22L-20-L
Directional ball valve

Product info

• Technical data

  DN:	20
  working pressure [bar]:	400
  Thread + standard:	solderless fittings, DIN 2353, light series, ISO 8434-1
  Thread [GA]:	M30x2,0

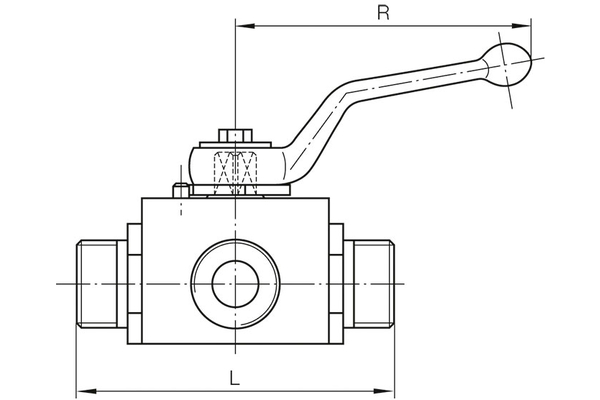

  L [mm]:	99
  Lever length [R] [mm]:	187

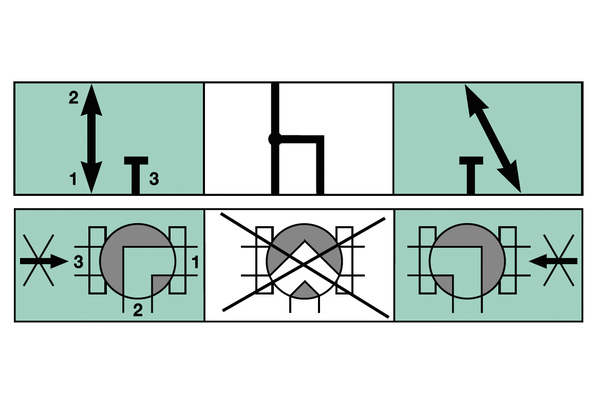

  Bore hole:	L
  Material Casing:	steel
  Material switching ball:	Stahl, hartverchromt
  Material switching ball sealing:	POM
  Material switching shaft:	steel
  Material switching shaft sealing:	NBR
  Product title short:	Directional ball valve 3/2-ways
