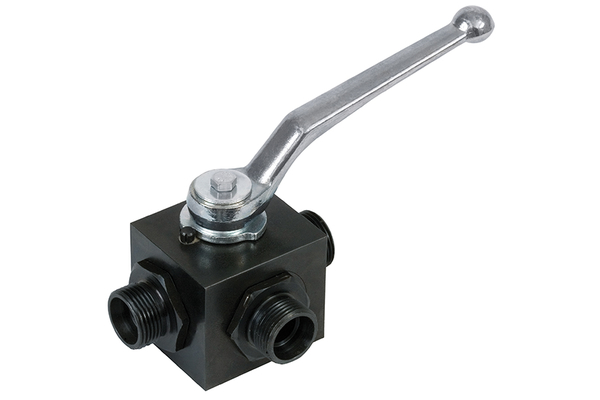

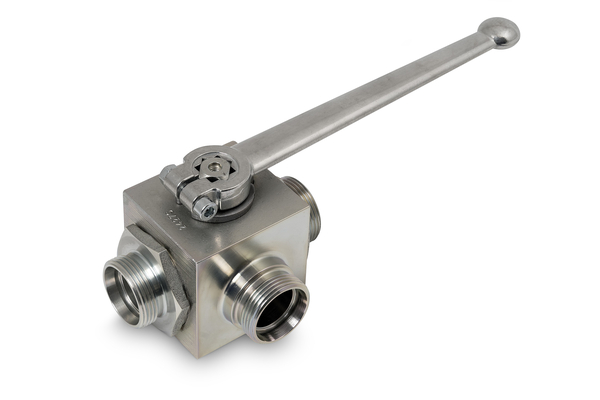

KHU3-8L-6-T
Directional ball valve

Product info

• Technical data

  DN:	6
  working pressure [bar]:	500
  Thread + standard:	solderless fittings, DIN 2353, light series, ISO 8434-1
  Thread [GA]:	M14x1,5
  Pipe Ø R [mm]:	8

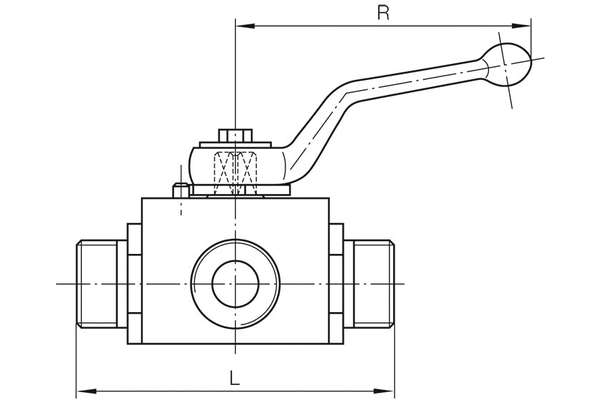

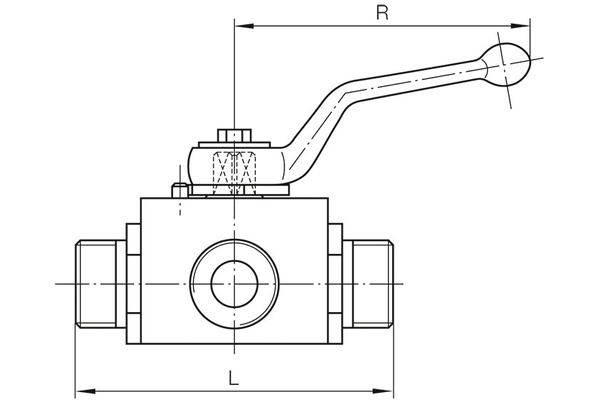

  L [mm]:	67
  Lever length [R] [mm]:	76
  B [mm]:	30
  SW [mm]:	19
  SW1 [mm]:	7
  H1 [mm]:	15,0
  H [mm]:	30

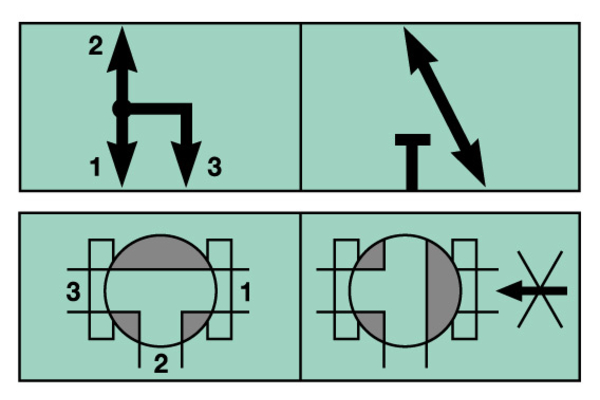

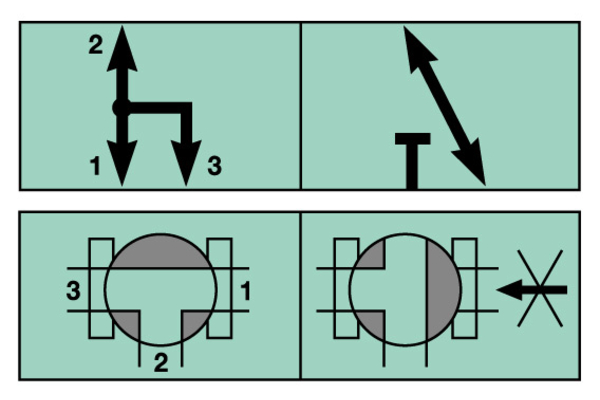

  Bore hole:	T
  GL [mm]:	10
  Material Casing:	steel
  Material switching ball:	Stahl, hartverchromt
  Material switching ball sealing:	POM
  Material switching shaft:	steel
  Material switching shaft sealing:	NBR
  Product title short:	Directional ball valve 3/2-ways
