KHU3-12S-8-L

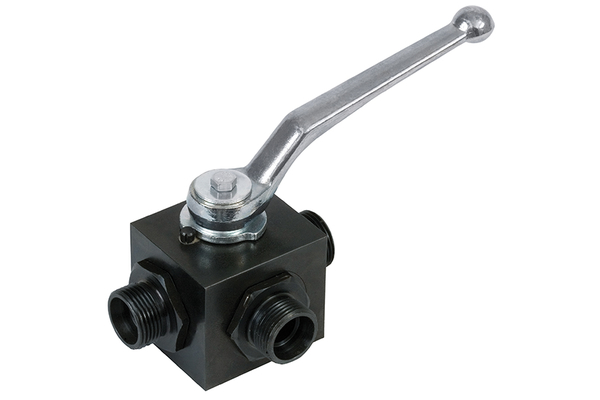

Directional ball valve

Product info

• Technical data

  DN:	8
  working pressure [bar]:	500
  Thread + standard:	solderless fittings, DIN 2353, heavy series, ISO 8434-1
  Thread [GA]:	M20x1,5

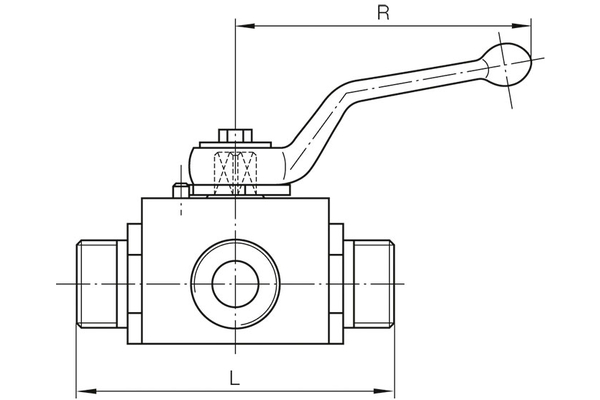

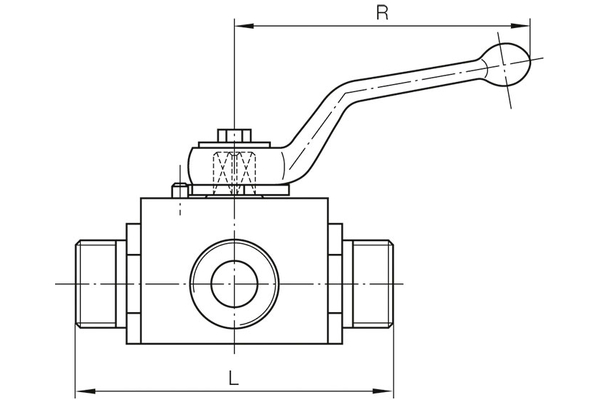

  L [mm]:	77
  Lever length [R] [mm]:	100
  Bore hole:	L
  Material Casing:	steel
  Material switching ball:	Stahl, hartverchromt
  Material switching ball sealing:	POM
  Material switching shaft:	steel
  Material switching shaft sealing:	NBR

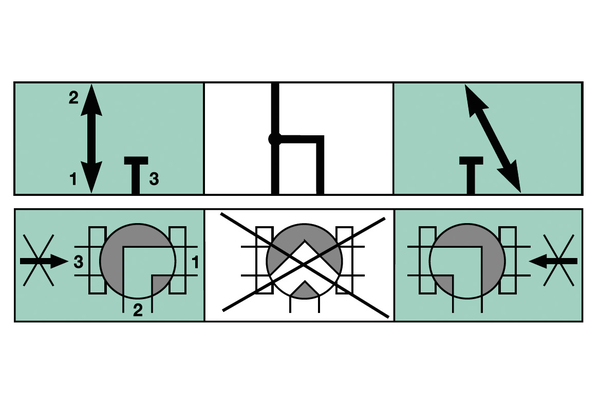

  Product title short:	Directional ball valve 3/2-ways
