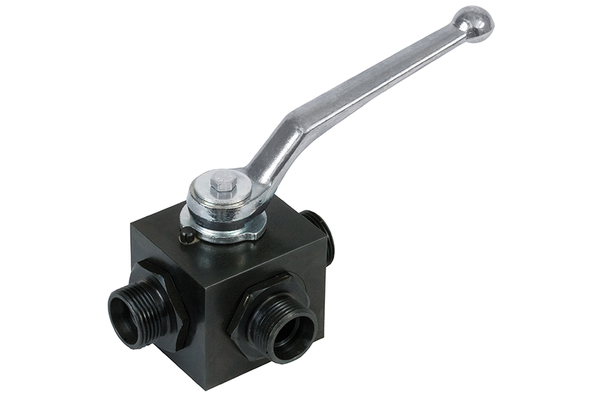

KHU3-14S-10-L
Directional ball valve

Product info

• Technical data

  DN:	10
  working pressure [bar]:	500
  Thread + standard:	solderless fittings, DIN 2353, heavy series, ISO 8434-1
  Thread [GA]:	M22x1,5
  Pipe Ø R [mm]:	14

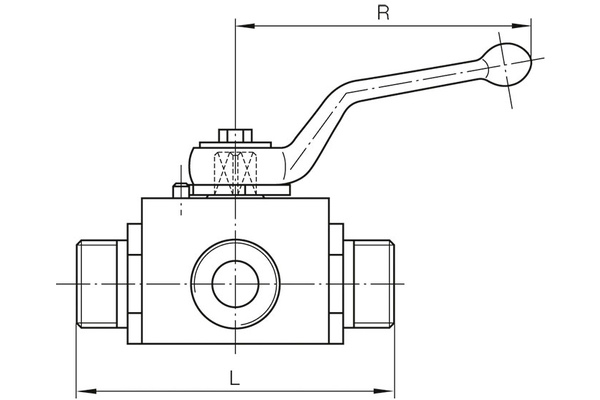

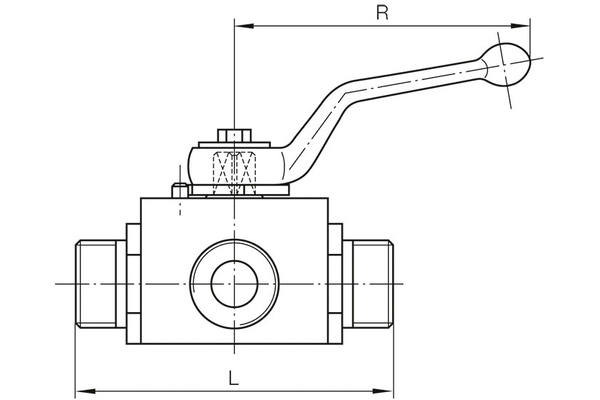

  L [mm]:	81
  Lever length [R] [mm]:	100
  B [mm]:	40
  SW [mm]:	24
  SW1 [mm]:	8
  H1 [mm]:	14,5
  H [mm]:	35

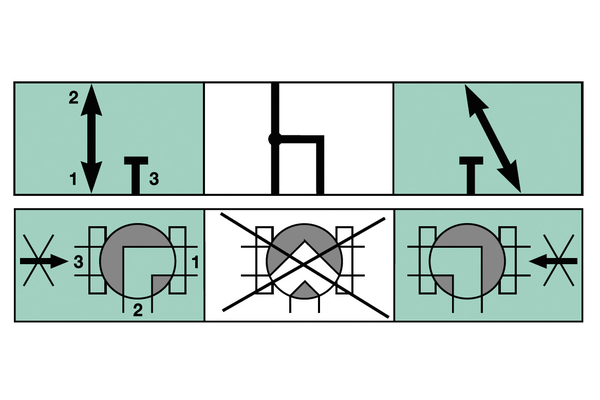

  Bore hole:	L
  GL [mm]:	14
  Material Casing:	steel
  Material switching ball:	Stahl, hartverchromt
  Material switching ball sealing:	POM
  Material switching shaft:	steel
  Material switching shaft sealing:	NBR
  Product title short:	Directional ball valve 3/2-ways
