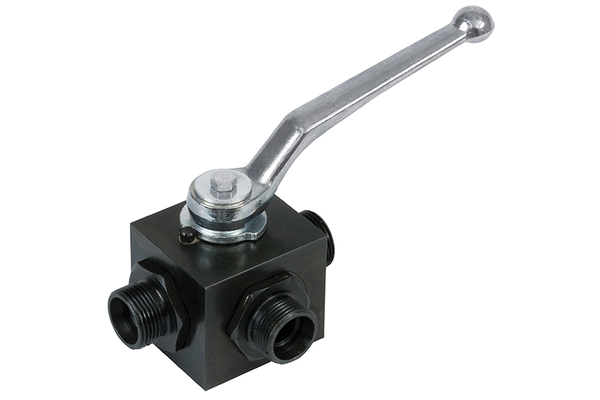

KHU3-38S-25-L
Directional ball valve

Product info

• Technical data

  DN:	32/25
  working pressure [bar]:	400
  Thread + standard:	solderless fittings, DIN 2353, heavy series, ISO 8434-1
  Thread [GA]:	M52x2,0
  Pipe Ø R [mm]:	38

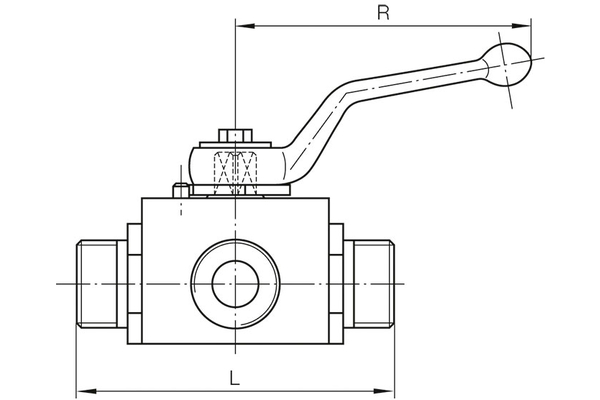

  L [mm]:	134
  Lever length [R] [mm]:	187
  B [mm]:	65
  SW [mm]:	55
  SW1 [mm]:	14
  H1 [mm]:	31,0
  H [mm]:	65

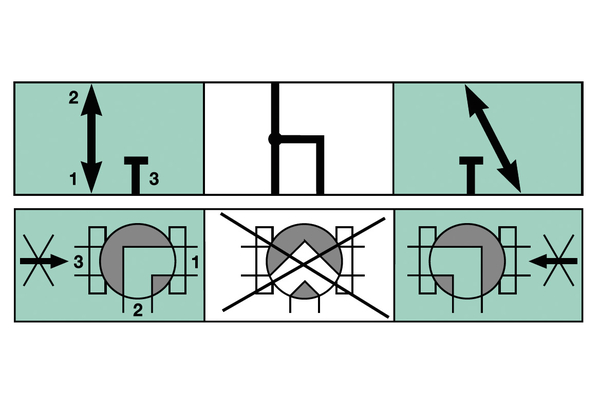

  Bore hole:	L
  GL [mm]:	22
  Material Casing:	steel
  Material switching ball:	Stahl, hartverchromt
  Material switching ball sealing:	POM
  Material switching shaft:	steel
  Material switching shaft sealing:	NBR
  Product title short:	Directional ball valve 3/2-ways
