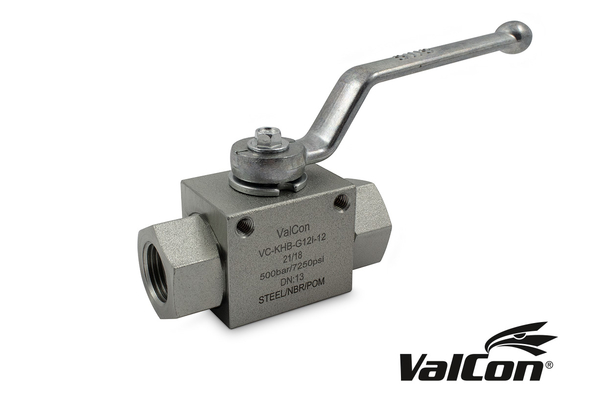

VC-KHB-G12I-12
Valcon® ball valve, block design

Product info

• Specifications

  DN:	12
  working pressure [bar]:	500
  Thread + standard:	Whitworth-Pipe thread (BSP), DIN EN ISO 228-1
  Thread [GA]:	1/2"

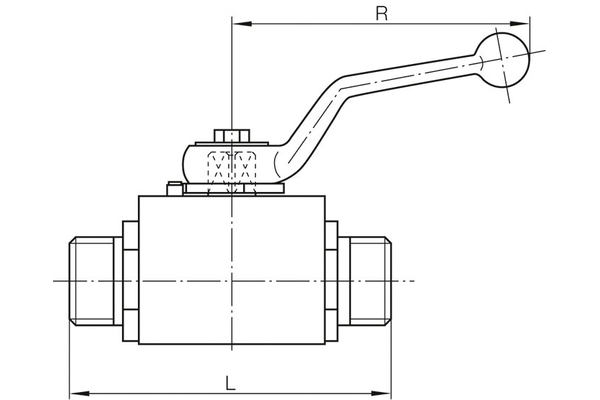

  L [mm]:	83,0
  Lever length [R] [mm]:	108,0
  Material Casing:	Steel
  Material switching ball sealing:	POM
  Material switching shaft:	steel
  Material switching shaft sealing:	NBR
  Product title short:	2-way ball valves
