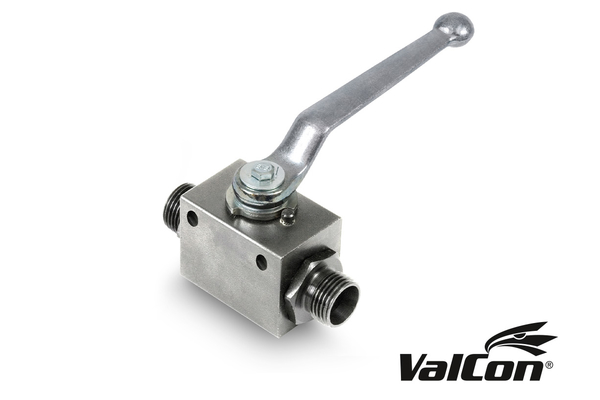

Valcon® 2-way ball valves (metric, light series)

Similar image
Similar image

2/2-way version

To accessories

Detail

Art. No.
VC-KHB-8L-6
%
SALE
VC-KHB-10L-8
%
SALE
VC-KHB-12L-10
%
SALE
VC-KHB-15L-12
%
SALE
VC-KHB-18L-16
%
SALE
DN
6
8
10
12
16
working pressure [bar]
500
500
500
500
400
Thread + standard
solderless fittings, DIN 2353, light series, ISO 8434-1
solderless fittings, DIN 2353, light series, ISO 8434-1
solderless fittings, DIN 2353, light series, ISO 8434-1
solderless fittings, DIN 2353, light series, ISO 8434-1
solderless fittings, DIN 2353, light series, ISO 8434-1
Thread [GA]
M14x1,5
M16x1,5
M18x1,5
M22x1,5
M26x1,5
Pipe Ø R [mm]
8
10
12
15
18
L [mm]
67,0
74,0
74,0
82,0
82,0
Lever length [R] [mm]
120
120,0
120,0
108,0
155,0
B [mm]
28
SW [mm]
22
SW1 [mm]
9
Quantity


Product info

  • Technical data
    Material Casing: Steel
    Material switching ball sealing: POM
    Material switching shaft: steel
    Material switching shaft sealing: NBR

Benefit

Equipped with mounting holes for panel constructions.

Practical tip

Standardized connection shapes can have different nominal pressures than the aforementioned operating pressures. Please note this when selecting. High pressure ball valves with floating ball guide:  2/2-way and 3/2-way ball valves with a floating ball may only be switched without pressure.
