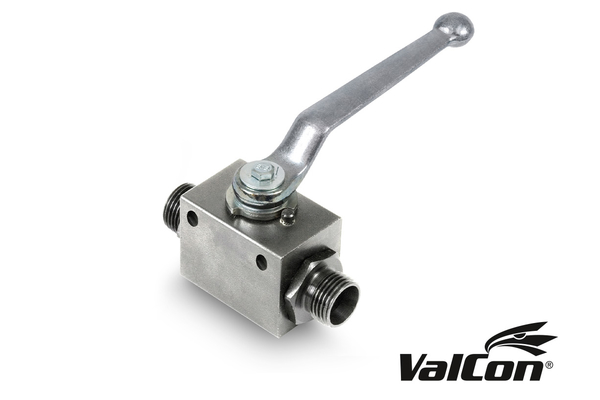

VC-KHB-12L-10
Valcon® ball valve, block design

Product info

• Technical data

  DN:	10
  working pressure [bar]:	500
  Thread + standard:	solderless fittings, DIN 2353, light series, ISO 8434-1
  Thread [GA]:	M18x1,5
  Pipe Ø R [mm]:	12
  L [mm]:	74,0
  Lever length [R] [mm]:	120,0
  Material Casing:	Steel
  Material switching ball sealing:	POM
  Material switching shaft:	steel
  Material switching shaft sealing:	NBR
  Product title short:	2-way ball valves
